jacket tube
Negotiable
/ Meter
1000 Meters(Min.Order)
- 50000 Meter / Meters per Month
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S3(h) | Type | Insulation Sleeving | |
| Material | PE | Application | Low Voltage | |
| Rated Voltage | 1-36kV |
Product Description
Specifications
jacket tubeRaychem FCSM
Heavy wall heat shrink tube
different color,size from 9/3 to 160mm
DNV certificate
jacket tube

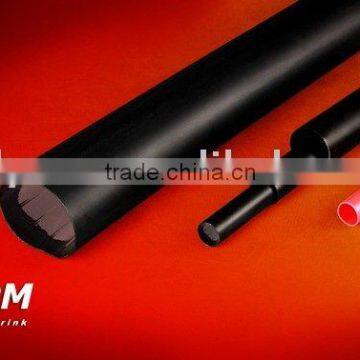

S3(h) Heavy-Wall Heat Shrinkable Tubing
Voltage Class 1 ~36kV Ideal for insulation and mechanical protection of cable joints
Heavy wall heat shrinkable tubing with radiation cross-linked polyolefin outer layer for excellent insulation, corrosion prevention and adhesive inner layer for waterproof sealing and insulation.
Applications
Insulation and environmental protection of cable joints
Other applications where requires insulation and protection, sealing or cable jacketing
Features/Benefits
High Shrink Ratio: 3:1
Abrasion Resistant
Also available without adhesive liner
Temperature Range
Operating Temperature : -55 ~ 105 ºC
Shrink Temperature : 105 ~ 135 ºC
Colour:Black,red
Certification
Type certified by DNV
Type certified by CCS
Product Code Cross References
Raychem/Tyco : FCSM
Technical Details
Test item | Test method | Typical value |
Tensile strength | ASTM D2671 | ≥ 12Mpa |
Break down elongation | ASTM D2671 | ≥ 400% |
Tensile strength after aging | ASTM D2671 | ≥ 12Mpa |
Break down elongation after aging | ASTM D2671 | ≥ 350% |
Water absorption | ASTM D570 | ≤ 0.5% |
Heat shock | 200 for 30 minutes | No drop/no flow |
Low temperature flexibility | -55 for 4 hours | No cracking |
Dielectric strength | ASTM D2671 | ≥ 15kV/mm |
Peel off strength to PEX | ASTM D2671 | ≥ 30N/cm |
Peel off strength to steel | ASTM D2671 | ≥ 30N/cm |
Production Selection
| Product Code | Inner Dia. before shrink(mm) | Max.Inner Dia. after shrink(mm) | Min. Wall thickness After shrink(mm) | Normal length/pc(meter) |
9/3 | 9 | 3 | 2.6 | 1.22 |
12/4 | 12 | 4 | 2.8 | 1.22 |
16/5 | 16 | 5 | 3.0 | 1.22 |
19/6 | 19 | 6 | 3.0 | 1.22 |
22/6 | 22 | 6 | 3.25 | 1.22 |
25/8 | 25 | 8 | 3.25 | 1.22 |
33/8 | 33 | 8 | 3.25 | 1.22 |
40/12 | 40 | 12 | 3.95 | 1.22 |
45/13 | 45 | 13 | 3.95 | 1.22 |
55/16 | 55 | 16 | 4.05 | 1.22 |
65/19 | 65 | 19 | 4.05 | 1.22 |
75/22 | 75 | 22 | 4.05 | 1.22 |
85/25 | 85 | 25 | 4.05 | 1.22 |
95/25 | 95 | 25 | 4.05 | 1.22 |
100/30 | 100 | 30 | 4.05 | 1.22 |
115/34 | 115 | 34 | 4.05 | 1.22 |
130/36 | 130 | 36 | 4.05 | 1.22 |
140/42 | 140 | 42 | 4.05 | 1.22 |
150/42 | 150 | 42 | 4.05 | 1.22 |
150/50 | 150 | 50 | 4.05 | 1.22 |
160/50 | 160 | 50 | 4.05 | 1.22 |
ID: Internal Diameter
