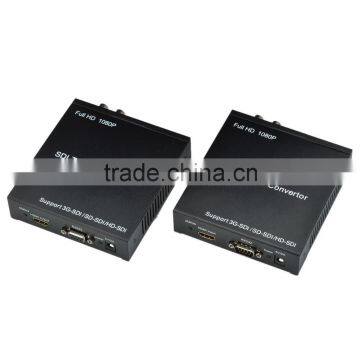

CHEERLINK Full HD 1080P HDMI 1.3 to SDI Extender Set - Black

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port FOB Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHEERLINK		Model Number	DX338859
Place of Origin	Guangdong, China

Product Description

- SDI (BNC female) compatible with SMPTE 424M , SMPTE 292M and SMPTE 259M;

- HDMI 1.3

- Resolution: 576i, 480i, 720P50/60Hz, 1080i 50/60Hz, 1080P 50/60Hz;

- EDIE learning DPI for EDID management control, more compatible;

- Supports 2.1/5.1/7.1 stereo audio;

- Supports video and audio sync transmission;

- Supports bidirectional IR control;

- RS232 source, transferred together with the HDMI signal, could control the sources from the sinks or control the sinks from sources;

- SDI signal: 2 x SDI (BNC female), support SD / 3G / HD-SDI;

- SDI signal format: SD-SDI (270mbps) HD-SDI (1.485Gbps) 3G-SDI (2.97Gbps);

- HDMI signal resolution: up to 1080P / 60Hz;

- Max bandwidth: 225MHz / support 36 bit deep color;

- SDI signal amplitude: 0.8V p-p;

- SDI Impedance: 75 ohms;

- Operating temperature range: (-15 to 55 degrees Celsius);

- Operating humidity range: 5~90%RH (no condensation).

General
Brand	CHEERLINK
Material	Aluminum alloy + electronic components
Color	Black
Quantity	1Piece
Other Features
Cable Length	120cm
Connector	DC / RS232 / ISP / SDI , HDMI
Plug Specifications	EU Plug (2-Round-Pin Plug)
Power Supply	Input: AC 100V~240V, 50/60Hz, Max 0.5A; Output : 5V-2A.
Certification	CE, FCC
Other Features	The product is widely used in television broadcast live , high-definition video conference , high-definition video surveillance, industrial production monitoring systems, traffic monitoring systems, security systems medical systems and remote multimedia systems.

Dimensions & Weight
Dimensions	4.45 in x 5.71 in x 1.18 in (11.3 cm x 14.5 cm x 3 cm)
Weight	12.56 oz (356.1 g)

Packing List
1 x TX 1 X RX 2 x Power adapter (EU, 2-round-pin-plug Input : AC 100V - 240V 50/60Hz 0.5A Max Output : 5V-2A 120cm-cable) 1 x TX cable (122cm) 1 x RX cable (121cm) 1 x English & Chinese user manual
