Home > Products > HDMI Extender > CHEERLINK Hot New Products for 2015 HDMI Penis Extender tv Transmitter
CHEERLINK Hot New Products for 2015 HDMI Penis Extender tv Transmitter
- Shenzhen
- T/T Credit Card
You May Like
-
CHEERLINK Female to Male 1080P HDMI Extender / Repeater - Black + Golden
-
CHEERLINK A HDMI KVM Extender / Transmitter & Receiver Set - Black With IR Control
-
CHEERLINK HDMI / IR KVM Extender / Transmitter & Receiver Set
-
Hot Sale HDMI Extender Over Cat5e/cat6 Support 3D And 1080P
-
CHEERLINK HDMI Extender Supported 1080P HDMI V1.3 Single Cat5e/6 Wall Plate POE Extender Set With Transmitter And Receiver
-
CHEERLINK HDMI KVM Extender / Transmitter & Receiver Set - Black
Product Details
| Brand Name | Cheerlink | Model Number | DX312342 | |
| Place of Origin | Guangdong, China |
Product Description

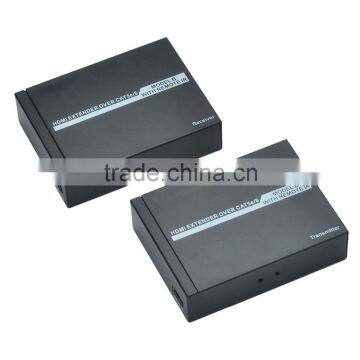

HDMI KVM extender includes transmitter and receiver, the Transmitter combines HDMI video, audio and control signals, and then transmits them through single CAT5e cable. Receiver gets these signals, separates signals and rebuilds video/audio, output through HDMI interface.
Other Features | |
Cable Length | 145 cm |
Connector | HDMI,3.5mm,Cat 6,Cat 5e |
Power Adapter | US Plug |
Power Supply | Input: 100~240V, 50/60Hz 0.25A, Output: 5V 1000mA. |
Certification | CE / FCC / RoHS |
Other Features | Power: <2.5W TX, <1.5W RX; Video bandwidth: maximum TMDS clock frequency 225MHz, 6.75Gbps; Resolution and Distance: 1080P 50M-Cat5e / 80M-CAT6; 720P/1080i 80M-Cat5e / 100M-CAT6; Audio format: 8-Channel, support Dolby TrueHD and DTS Master; TMDS input signal: 1.2V point to point; DDC input signal: 5V point to point; HD interface standard: HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID; Support 3D signal, all 7 formats; UART date rate: Support 4800bps, 9600bps, 19200bps, 39400bps, 57600bps; Remote IR: 38khz; Temperature range: Operation 0-40'C, stock -20-60'C. |
Packing List 1 x Transmitter 1 x Receiver 2 x AC power adapter (2-flat-pin plug / 100~240V / 145cm-cable) 1 x IR input Cable (95cm) 1 x IR output Cable (92cm) 1 x English user manual | |
