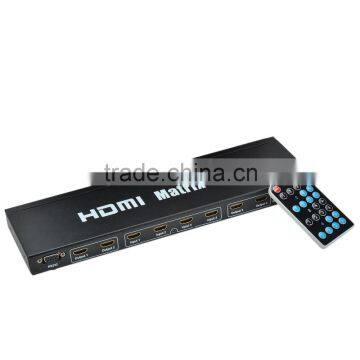

CHEERLINK HDMI 1.3 Matrix 4x4 w/ IR Remote Control hdmi switcher / splitter

The 4 x 4 HDMI MATRIX can connect four HDMI signal sources with the four displays at the same time. It can easily and freely split or switch four HDMI signals on four displays or projectors which are compatible with HDMI signal. In addition, if connected its port with HDMI cable, it can amplify the HDMI signal. And it offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environment.

-  HDMI version: HDMI1.4a

-  HDCP version: 1.4

-  Support audio color format: 12 bit

-  Support audio format: DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD

-  Maximum baud rate: 2.25Gbps

-  Input/output TMDS signal: 0.5-1.5Vp-p

-  Input/output DDC signal: 5Vp-p(TTL)

-  Input cable distance: <=10 m AWG26 HDMI standard cable

-  Output Cable length: <=15 m AWG26 HDMI standard cable

-  Maximum Working Current: 1.3 A

-  Operating temperature range: (-15~55'C )

-  Operating humidity range: 5 to 90%RH (no condensation)

-  Supports CEC

-  Supports Blue-ray 24/50/60fs/HD-DVD/xvYCC
t
-  Supports signal timing rese

-  Supports AWG26 HDMI standard cable, input up to 15 meters, output up to 20 meters

-  Input ports can be controlled by IR remote control

-  Via RS-232 control, the machine can upgrade the software, and the input and the output can be switched by computer

-  No signal loss

General
Brand	CHEERLINK
Model	N/A
Material	ABS
Color	Black
Quantity	1Piece
Other Features
Cable Length	101cm
Connector	IR / RS232 / DC , HDMI
Plug Specifications	US Plug (2-Flat-Pin Plug)
Power Supply	Input: 100~240V /1A, 50 / 60Hz; Output: 12V /3A 101 cm
Certification	CE, FCC, RoHS

Dimensions & Weight
Dimensions	17.13 in x 7.09 in x 1.57 in (43.5 cm x 18 cm x 4 cm)
Weight	65.43 oz (1855 g)

Packing List
1 x Matrix 1 x Remote Control (2 x CR2025, included ) 7 x Screws 2 x Holder
