OEM Factory Wholesale Pure Fiber USB3 Active Optical Cable-AM to AM-5Gbps-100m

Products Description

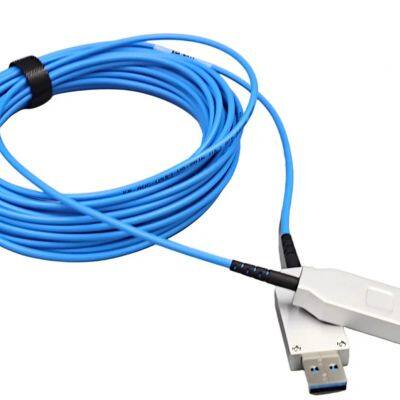

Abbreviated as USB3 AOC, the AOCFiberlink FPUC-3003 Pure Fiber USB3 Active Optical Cable is also called USB3 Optical Cable, USB3 Fiber Optical Cable, Fiber Optic USB Cable. This USB3 Active Optical Cable has two standard USB3 type-A male connectors, utilizing high flex OM1 pure fiber optical cable with TPU jacket as the transmission media, featuring maximum 5Gbps data rate, >10millions drag chain test, and transmission distance up to 100m (330ft) .

The FPUC-3003 is specifically designed to extend the EMI-free USB 3.0 signal transmission for applications where galvanic isolation is a must, such as medical devices,industrial machine vision systems, web cameras and more. If you want the cable to be backward compatible with USB2.0/1.1, a SuperTT build-in devices(also called as USB Dongle) is needed.

Gentle reminding: since it is made of pure fiber optic, the FPUC-3001 does not deliver power from the Host to Device. That is to say, this pure fiber USB3 Active Optical Cable only work with self-powered USB devices.

Highlight Features:

• High Bandwidth: complied with USB 3.0 standard, up to 5Gbps super speed

• Backward Compatible: Supports USB 2.0/1.1 when work with SuperTT build-in devices

• Long length Transmission: Delivers lossless signals over 100meter maximum length

• Powered by USB VBUS

• Easy Installation: Plug and play for both sides, unidirectional design

• Supports self-powered USB 3.0 compliant devices

• Durable Construction: Aluminum-alloy housing, corrosion-resistant gold-plated connectors

• RFI/EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment

• Customization: Up to 100m maximum length, logo, and packaging available

Applications:

• Machine Vision Camera Link

• Industrial Control

• Digital Signage

• Home Network Integration

• Medical Device Connectivity

• KVM Extension

• Remote Desktop USB 3.0 Connections

• Security: web camera, access control

• USB 3.0 Devices Sharing: print, scan, storage

Connection Diagram:

AOCFiberlink FPUC-3001 pure fiber USB3 active optical cable connection diagram
