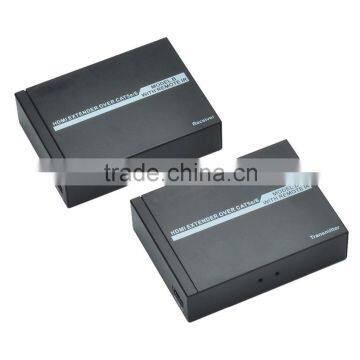

CHEERLINK HDMI KVM Extender / Transmitter & Receiver Set - Black
- FOB Shenzhen
You May Like
-
CHEERLINK A HDMI KVM Extender / Transmitter & Receiver Set include one transmitter and one receiver- Black
-
CHEERLINK HDMI Extender Supported HD 1080P 3D HDMI Extender Set w/ CAT 5 / 6 - Silver
-
HDMI KVM Extender / Transmitter & Receiver
-
CHEERLINK 24.3cm Female to Male HDMI Extender / Repeater Supports for the 4K x 2K resolution devices
-
HDMI KVM Extender / Transmitter & Receiver with CE/ FCC/ RoHS- Black
-
CHEERLINK 3d 1080P HDMI KVM Extender / Transmitter & Receiver Set RS232 - Black with ir control
Product Details
| Brand Name | CHEERLINK | Model Number | DX312342 | |
| Place of Origin | China |
Product Description
HDMI KVM extender includes transmitter and receiver, the Transmitter combines HDMI video, audio and control signals, and then transmits them through single CAT5e cable. Receiver gets these signals, separates signals and rebuilds video/audio, output through HDMI interface.
Other Features | |
Cable Length | 145 cm |
Connector | HDMI,3.5mm,Cat 6,Cat 5e |
Power Adapter | US Plug |
Power Supply | Input: 100~240V, 50/60Hz 0.25A, Output: 5V 1000mA. |
Certification | CE / FCC / RoHS |
Other Features | Power: <2.5W TX, <1.5W RX; Video bandwidth: maximum TMDS clock frequency 225MHz, 6.75Gbps; Resolution and Distance: 1080P 50M-Cat5e / 80M-CAT6; 720P/1080i 80M-Cat5e / 100M-CAT6; Audio format: 8-Channel, support Dolby TrueHD and DTS Master; TMDS input signal: 1.2V point to point; DDC input signal: 5V point to point; HD interface standard: HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID; Support 3D signal, all 7 formats; UART date rate: Support 4800bps, 9600bps, 19200bps, 39400bps, 57600bps; Remote IR: 38khz; Temperature range: Operation 0-40'C, stock -20-60'C. |
Packing List 1 x Transmitter 1 x Receiver 2 x AC power adapter (2-flat-pin plug / 100~240V / 145cm-cable) 1 x IR input Cable (95cm) 1 x IR output Cable (92cm) 1 x English user manual | |
