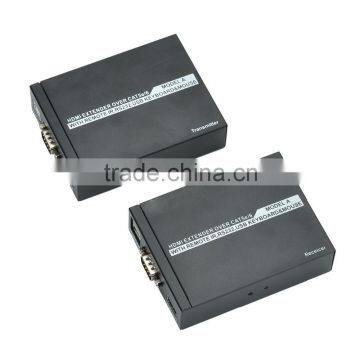

CHEERLINK A HDMI KVM Extender / Transmitter & Receiver Set - Black with IR control
Negotiable
/ Piece
100 Pieces(Min. Order)
- FOB Shenzhen
You May Like
-
CHEERLINK HDMI / IR KVM Extender / Transmitter & Receiver Set
-
Hot sale HDMI Extender over Cat5e/cat6 support 3D and 1080P
-
CHEERLINK HDMI Extender Supported 1080P HDMI V1.3 Single Cat5e/6 Wall Plate POE Extender Set With Transmitter and receiver
-
CHEERLINK HDMI KVM Extender / Transmitter & Receiver Set - Black
-
CHEERLINK A HDMI KVM Extender / Transmitter & Receiver Set include one transmitter and one receiver- Black
-
CHEERLINK HDMI Extender Supported HD 1080P 3D HDMI Extender Set w/ CAT 5 / 6 - Silver
Product Details
| Brand Name | CHEERLINK | Model Number | DX324462 | |
| Place of Origin | Guangdong, China |
Product Description
Product Description
HDMI + USB KVM extender includes transmitter and reviver. Transmitter combines HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receiver gets these signals, separates signals and rebuilds video, audio and controls ones, output through HDMI interface. It supports USB HID mouse and keyboard, remote IR and bi-direction RS232 URAT.
| General | |
|---|---|
| Brand | CHEERLINK |
| Model | A |
| Material | Steel + electronic components |
| Color | Black |
| Quantity | 1Piece |
| Other Features | |
| Cable Length | 145cm |
| Connector | RS232 DC interface , USB , Cat 6 , Cat 5e , HDMI , 3.5mm |
| Plug Specifications | US Plug (2-Flat-Pin Plug) |
| Power Supply | Input 100~240V, 50/60Hz, 0.25A; Output: 5V 1A |
| Certification | CE/ FCC/ RoHS |
| Other Features | Power: <2.5W TX, <1.5W RX; Video bandwidth: maximum TMDS clock frequency 225MHz, 6.75Gbps; Resolution and Distance: 1080P 3D or 1920*1200 50M-Cat5e / 80M-CAT6; 720P/1080i 80M-Cat5e / 100M-CAT6; Audio format: 8-Channel, support Dolby TrueHD and DTS Master; TMDS input signal: 1.2V point to point; DDC input signal: 5V point to point; HD interface standard: HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID; Support 3D signal, all 7 formats; UART date rate: Support 4800bps, 9600bps, 19200bps, 39400bps, 57600bps; Remote IR: 38khz; USB interface: USB HID compatible devices, plug and play, no need to install software; Supports EDID call back; Supports CEC pass through USB HID mouse and key board; Compatible with HDCP 1.2 and DVI1.0; Temperature range: Operation 0-40'C, stock -20-60'C. |
| Dimensions & Weight | |
|---|---|
| Dimensions | 4.37 in x 3.15 in x 1.06 in (11.1 cm x 8 cm x 2.7 cm) |
| Weight | 16.42 oz (465.6 g) |
| Packing List |
|---|
| 1 x Transmitter 1 x Receiver 2 x AC power adapter (2-flat-pin plug / 100~240V / 145cm-cable) 1 x USB A-B Cable (96cm) 1 x IR input Cable (91.5cm) 1 x IR output Cable (196.5cm) 1 x English user manual |
