Elevator Rg59 Cable,b U,coax Rg59,structured Cabling,rg59 Coaxial Cable,rg59 Coaxial Cable Price

Specifications

coaxial cable TV 75 ohm coaxial cable with power
(1)Foam coaxial cable
(2)Delivery fast
(3)Customers' specifications are welcomed.
(4)power cable 2cores ,4fores or others

Description:

1.CONDUCTOR:φ1.02MM Bare Copper

2.INSULATION :φ4.8MM Foam P.E.

3.SHIELDING:AL/P Foil+φ

4.0.12MM x128(90%) CCA Wire Braid

5.JACKET:  φ6.9MM P.V.C Black

6.print:001M… to… 300M ,or any word as your request

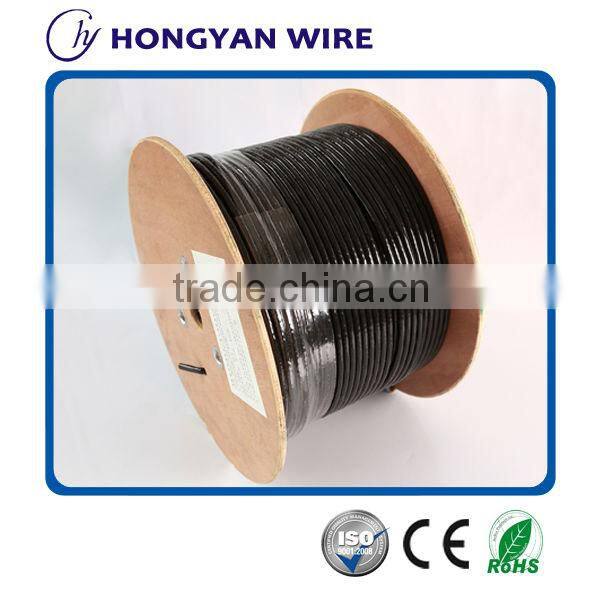

7.PACKING:300M/Wooden Reel

Specifications:

Impedance: 75±3Ω
Capacitance: 80.3pF/m
Velocity of propagation: 83.0%
Return loss: more than 20dB
Screening effectiveness: more than 90dB
Inner conductor DCR: 17.6Ω/km
Outer Shield DCR: 16.1Ω/km
Voltage withstand: 1,000.0V DC
Spark test: 3000.0Vrms
Installation temperature: -40 to +85°C
Operating temperature: -40 to +85°C

Physical Dimensions

1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

1.15 years manufactory experience

2.OEM/ODM available

3.Steady product quality

4.Strict quality control

5.Strictly conform to CE,ROHS,ISO certificate

6.Quick delivery time(20ft,25days)

We are professional manufacturer for electric wire and network cable with competitive price and best quality since 1999,located in shenzhen city,China.

Production capacity: Eighty Millions per year

Factory area:2000 square meter

Worker:150 people

Certificate:CCC,ISO9001,CE,ROHS

Main Products:PVC insulation Wire,PVC/XLPE Power Cable,Fire-resistant wire,Control Cable,Lan Cable,Coaxial Cable,etc
