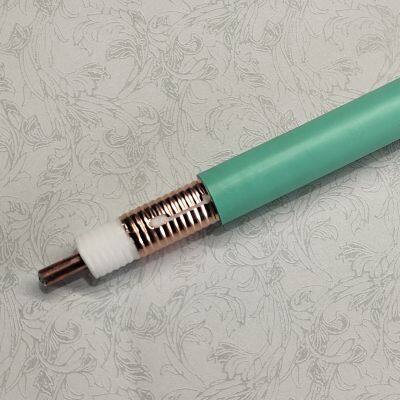

WLAN Radiating cable HLRCAYZ-50-12( 1/2"）Leaky cable 5.8GHz

WLAN Radiating cable HLRCAYZ-50-12(1/2")Leaky cable 5.8GHz

1、Leaky cable functions as a distributed antenna to provide communications in tunnels, mines

and large building complexes and is the solution for any application in confined areas.

2、Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be

radiated into the surrounding environment. Conversely, a signal transmitted near the cable will        couple into the slots and be carried along the cable length.

3、This leaky cable utilize a low-loss cellular polyethylene foam dielectric and a Corrugated copper foil outer conductor which offers a superior electrical performance together with good bending properties.

4、This product is suitable for WLAN communication systems, with low loss characteristics.

Technical features

Structural dimensions and materials

1、Inner Conductor------ Copper Clad Aluminum Wire---------------------------------  4.8 mm

2、Insulation--------------Physical Foam Polyethylene-----------------------------------12.3 mm

3、Outer Condutor-------Overlapping Copper Foil---------------------------------------12.6 mm

4、Jacket----------------- Low Smoke Halogen-free Fire-retardant-----------------------15.5 mm

MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS

1、Mininum Bending Radius-------------------------------------75mm

2、Repeated Bending Radius（15 times）----------------------150mm

3、Bending Torque-----------------------------------------------13.5N·m

4、Weight---------------------------------------------------------210 g/m

5、Recommended Clamp Distance------------------------------0.5mm

6、Minimum Distance to Wall------------------------------------50-80mm

7、Tensile Force---------------------------------------------------1000N

8、Storage Temperature---------------------------------------- -30 ℃ ~ ﹢80 ℃（LSZH)

9、Installation Temperature--------------------------------------20 ℃ ~ ﹢60 ℃（LSZH)

10、Operation Temperature--------------------------------------30 ℃ ~ ﹢80 ℃（LSZH)

ELECTRICAL SPECIFICATIONS

1、Capacitance----------------------------------------75pF/m

2、Impedance-----------------------------------------50±2Ω

3、Velocity---------------------------------------------89%

4、Insulation Resistance------------------------------＞10000MΩ?km

5、Jacket Spark---------------------------------------8KV

6、Insulation Voltage--------------------------------6KV

7、Inner Conductor DC Resistance------------------1.65 Ω/km

8、Outer Conductor DC Resistance------------------6.5 Ω/km

9、Operating Frequency-----------------------------5000~6000MHz

10、Optimum Operating Frequency----------------5000~5800MHz

12、VSWR

        5000~5850 MHz------------------------------≤1.4

13、ATTENUATION and COUPLING LOSS

Frequency（MHz）        Attenuation（dB/100m，20℃，±5%）    Coupling Loss（dB，2m，50%/95%，±5dB ）

       5000MHz---------------------------------33----------------------------------------------63/68

       5100MHz---------------------------------32----------------------------------------------63/68

       5200MHz---------------------------------32----------------------------------------------63/69

       5500MHz---------------------------------29.5--------------------------------------------64/70

       5800MHz---------------------------------29----------------------------------------------64/70
