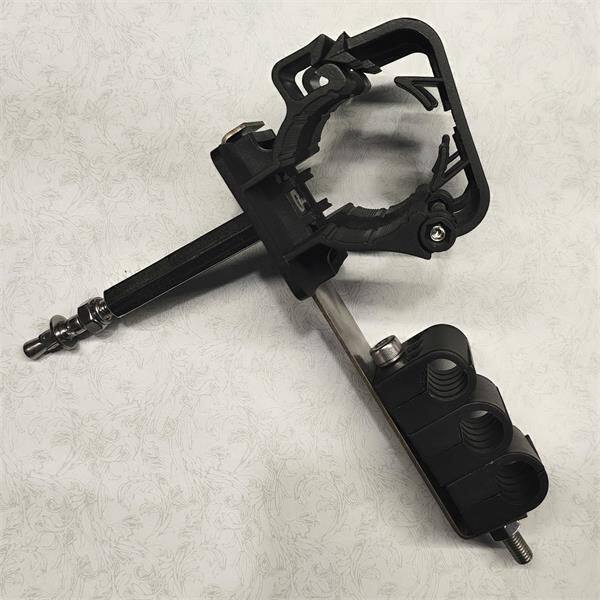

High speed dual-purpose leaky cable ordinary clamp for 1-5/8“radiating cable

PRODUCT DESCRIPTION

1、It is used for the installation   of highway, low-speed railway tunnel and indoor signal coverage    Radiating Coaxial Cable. It has the advantages of simple, safe and   efficient, and can meet the requirements of greater than or equal to 350km/h   train speed requirements.

2、It is suitable for 1-5/8 "   Radiating Coaxial Cable, fixed Radiating Coaxial Cable orientation, clamping   Radiating Coaxial Cable to prevent its movement.

3、All   metal parts are made of high quality 304 or stainless steel, We can also   provide 316 stainless steel material according to customer needs.

4、It   is fixed on the cable outside the tunnel through the cable lifting clamp, and   the clamp is firmly held with the steel wire bearing cable, and the spreader   does not slide along the axis of the steel wire bearing cable.

5、Halogen   free and environmentally friendly. Compliant with ROHS.

TECHNICAL INDEX

Character of service

1、 Ambient temperature during   use :

－45 ℃～＋85 ℃

2、 Ambient temperature during installation:

－20℃～＋60 ℃

3、Relative humidity for   reliable operation:

RH≤95%

Environmental performance

1、low temperature, -40 ℃±2 ℃, 72h

No crack

2、high temperature, 150 ℃±2 ℃, 72h

No crack

3、GDJS，25 ℃±3 ℃,＋80 ℃±2 ℃,（93±3）%，24h,10 times

No crack

4、Salt spray resistance property，35 ℃±2 ℃，5 %，240 h

 No red rust

5、Solar radiation   resistance

No powder

Mechanical Specifications

1、Maximum Load

≥2500N

2、Axial pull-out force

≥150N

3、Shear Load

≥1000N

MATERIAL INFORMATION

1、metallic parts

 304 Stainless   steel

2、Non metallic parts

PA66

Flame retardant performance

FV0

Cable compatibility

1、Compatible radiating cable diameter, minimum

46mm

2、Compatible radiating cable diameter, maximum

49mm

3、Nominal Size

48mm

Recommended / Maximum Clamp Spacing

 1.0～1.3m

Minimum Distance to Self-supporting Steel Strand

80mm
