Home > Products > leaky cable common clamp > Double self-locking clamp for 1-5/8“radiating cable

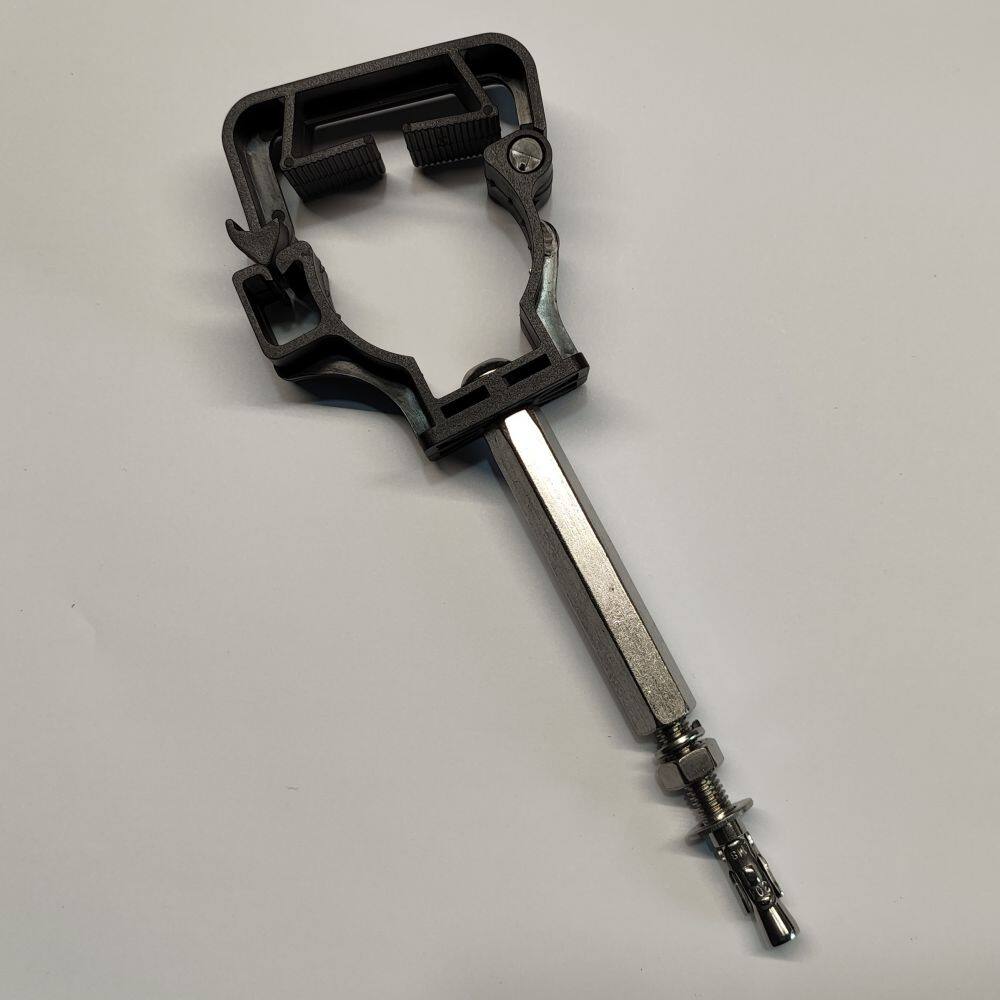

Double self-locking clamp for 1-5/8“radiating cable
USD $1.75 - $2.5
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shanghai，any port
- T/T
- 15 days
You May Like
-
Double self-locking clamp for 1-1/4“radiating cable
-
Fire-proof clamp for 1-5/8" leaky cable
-
Fire-proof clamp for 1-5/8" leaky cable
-
Fire-proof clamp for 1-5/8" leaky cable
-
LCXFC-1-5/8C Integrated quick installation of leaky cable fire-proof clamp
-
Double self-locking steel wire rope hanging common clamp for 1-5/8 radiating cable
Product Details
| Brand Name | Ascent | Place of Origin | China | |
| Model Number | 1-5/8” |
Product Description
Double self-locking clamp for 1-5/8“radiating cable
| clamp for 1-5/8 radiating cable | ||
| General Specifications | ||
| Product Type | Double self-locking Clamp for 1-5/8 radiating cable | |
| Material | Polyamide PA66 | Stainless steel | |
| Color | Black | Silver | |
| Dimensions | ||
| Compatible Diameter, maximum | 50mm | |
| Compatible Diameter, minimum | 47mm | |
| Nominal Size | 48.5mm | |
| Hanger Spacing | 1～1.3m | |
| Non metallic components | ||
| Height | 76mm | |
| Width | 25mm | |
| Length | 74.5mm | |
| metallic components | ||
| bolt | M8*25 | |
| Hexagonal connecting rod | M8*75 | |
| expansion anchor | M8*80 | |
| Fire class | FV0 | |
| Environmental | ||
| Operating Temperature | -40 to +85°C | |
| Installation Temperature | -20 to +80°C | |
| Storage Temperature | -40 to +85°C | |
| Mechanical Specifications | ||
| Maximum Load | 2000N | |
| Packaging and Weights | ||
| Height, packed | 280mm | |
| Width, packed | 215mm | |
| Length, packed | 430mm | |
| Packaging quantity | 160 | |
| Weight, gross | 6kg | |
