Home > Products > Coaxial Cable > RG58 Coaxial Cable 50 OHM

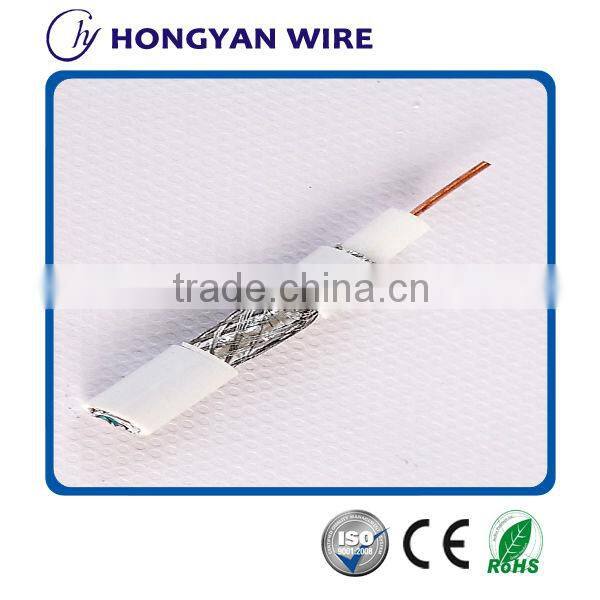

RG58 Coaxial Cable 50 OHM
US$ 100 - 200
/ Kilometer
10 Kilometers(Min. Order)
- FOB SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HongYan | |
| Model Number | Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Specifications
RG58 Coaxial Cable 50 OHM1. RG58
2. Coaxial Cable 50 OHM
3. CE ROHS E245362 Certification
RG58 Coaxial Cable 50 OHM
| RG6 COAXIAL CABLE WITH JELLY | ||
| 1.Construction: | ||
| NORMINAL CENTRAL CONDUCTOR DIA. | 1.02CCS+/-0.01 mm | |
| NORMINAL INSULATION DIA. | 4.57FPE+/-0.10 mm | |
| NORMINAL JACKET DIA. | 6.86+/-0.20 mm | |
| NORMINAL CAPACITANCE | 50+/-3 pF/m | |
| NORMINAL IMPEDANCE | 75+/-3 Ohm | |
| VELOCITY OF PROPAGATION | 85% | |
| RETURN LOSS | ≥20dB | |
| INSULATION RESISTANCE(20 ºC) | MΩ • km ≥5000 | |
| DIELECTRIC STRENGTH (CONDUCTOR TO SHIELD) | ≥1.6 kV | |
| ATTENUATION TESTED AT | 68 ºF(20 ºC) | |
| TESTED AT LENGTH | 100m | |
| 2.Attenuation: | ||
| Attenuation | [@68o F. (20o C.)] | |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10 | 34 |
| 3000 | 11.4 | 37.5 |
