Home > Products > Coaxial Cable > Coaxial Cable Rg59 With Power Cable for CCTV(CE/ROHS/SGS/ISO),Professional Cables Factory in China

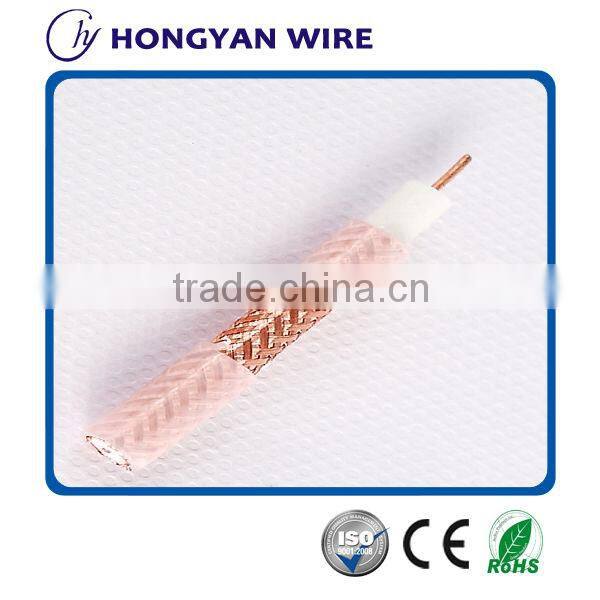

Coaxial Cable Rg59 With Power Cable for CCTV(CE/ROHS/SGS/ISO),Professional Cables Factory in China
- FOB SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HongYan | |
| Model Number | Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Specifications
coaxial cable rg59 with power cable for CCTV(CE/ROHS/SGS/ISO),Professional cables factory in china1.Factory Competitive.
coaxial cable rg59 with power cable for CCTV(CE/ROHS/SGS/ISO),Professional cables factory in china
Detail specification
CONDUCTOR | MATERIAL | BC |
Nom. Dia. | 0.64mm | |
DIELECTRIC | MATERIAL | PE |
Nom. Dia. | 3.8mm | |
SHIELD | MATERIAL | Al foil+112*0.12mm CCA braiding |
Coverage | 95% | |
JACKET | MATERIAL | PVC |
Nom. Thick | 0.8mm | |
Nom. Dia. | 6.20mm | |
POWER CABLE | MATERIAL | CCA |
Nom.Dia. | 2C/32*0.2MM |
BASIC CHARACTERISTICS
Nominal Impedance(Ohm) | 50±3 |
Nominal Velocity of Propagation(%) | 85 |
Nominal Capacitance(pF/m) | 54 |
Sparker Test(VAC) | 4000 |
SRL(dB) | >20 |
Application :
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
3. For security systems
Product Packing:
1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.2. Inner packing: Wooden reel, plastic reel, and paper reel.3. Outer packing: Carton box, pull out box, pallet available.4. Other packing available according to client's request.
Characteristics:
Impedance: 50+/-3 Ohm Velocity of Propagation: 85%Capacitance: 54 pF/mReturn Loss: 20dB min
Options for material:
1) Inner conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: unbonded AP, Bonded AP, APA, Bonded APA available;
3) Braiding material: Al-mg, CCA,Bare Copper and Tinned Copper wire available;
4) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) Jacket material: PVC, PE Flame retardant,UV, Rohs, available.
