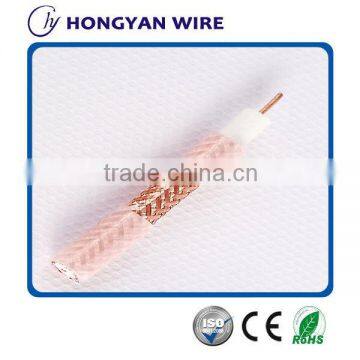

RG(rg59&rg6&rg58&rg11) coaxial cable for CCTV and CATV(CE,ROHS,SGS,ISO),professional cable factory in China

Specifications

RG(rg59&rg6&rg58&rg11) coaxial cable for CCTV and CATV(CE,ROHS,SGS,ISO),professional cable factory in China

Specifications:
1)Inner Conductor: 1.02mm Copper Clad Steel (22%) ;TC or BC available
2) Dielectric: 4.57± 0.05mm Foam PE or Solid PE  available
3) Braiding material: AL, BC or TC available
4) Braiding coverage: 0.16mm *16*4(60%)AL-Mg Alloy ;30 - 97% available
5) Shield: Bonded Aluminum PET Aluminum ;standard, tri-shield or quad-shield structure available
6) Jacket: 6.85± 0.05 mm PVC ;flame retardant PVC jacket available
7) OEM and customer's designation are acceptable

Other material and size can be available:

1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;

                                7*0.2mm,0.8mm,19*0.18mm,1.63mm,special size can be make according to customer requirement .
2) Al-foil: unbonded AP, Bonded AP, APA, Bonded APA available;
3) Braiding wire: Al-mg, CCA,Bare Copper and Tinned Copper wire available;
4) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 45- 97% available;
7) PVC sheath: Flame retardant,UV, Rohs, available.

Usage:

  Using in CCTV Camera and applicableto video filed,communication system abd signal controlling system,video monitor    cirsuity ,broadcast signal    control ,public TV antenna,circuit TV monitor system camera .

Characteristics:

   55MHz:  5.25dB        450MHz: 14.04dB
    211MHz: 9.43dB        500MHz: 14.80dB
    250MHz: 10.24dB       550MHz: 15.62dB
    270MHz: 10.63dB       600MHZ: 16.34dB

Explanation of abbreviations:
1) CCS = copper clad steel
2) BC = bare copper
3) TC = tinned copper
4) B = bonded
5) V = PVC
6) E = PE
7) 90 = 90% coverage
8) M = messenger

Packing:
1) Packing lengths: 100m/roll, 200m/roll, 300m/roll, 100 yards/roll,
    200 yards/roll, 300yard/roll
2) Inner packing: wooden drum, plastic drum, paper drum
3) Outer packing: carton box, pull out box
4) Other packing available according to client's request
