Product Details
| Place of Origin | Guangdong, China | Brand Name | Hongyan | |
| Model Number | Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Specifications
HOT SALE Coaxial cable RG6/RG8/RG11/RG591.CE ISO RoHS
2.Quick Delivery
3.Stable High Quality
HOT SALE Coaxial cable RG6/RG8/RG11/RG59

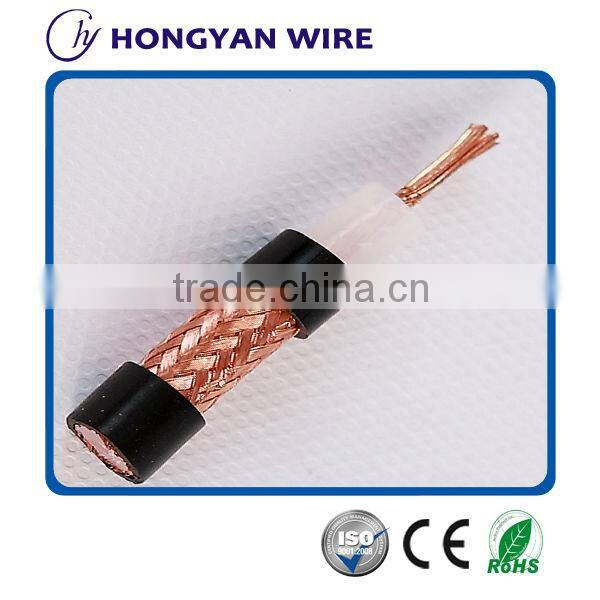

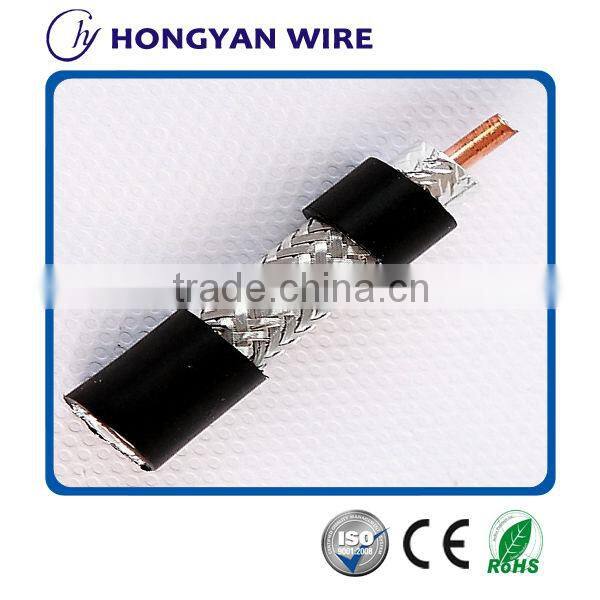

1. RG6 Coaxial Cable Construction
1) Inner conductor: CCA/CCS/CU
2) Dielectric: SPE/FPE
3) AL Foil: Bonded, non-bonded, single, double
4) Braiding wire material: Cu,Al-Mg, TC
5) Braiding wire diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding net: 48,64,72,80,96,128 and more
7) Coverage: 40%,50%, 60%, 80% and more
8) PVC Degree: 65,68,70,75
9) Color: Black,white or grey
2. RG6 coaxial cable electrical properties
Impedance : 75±3Ohms
Capacitance: 52±2(pF/m)
Velocity of propagation: 85%
Attenuation | Frequency | Nominal values | Frequency | Nominal values |
[@68°F(20°C)] | MHz | (dB/100m) | MHz | (dB/100m) |
5 | 1.90 | 750 | 18.44 | |
55 | 5.25 | 870 | 19.99 | |
211 | 9.43 | 1000 | 21.46 | |
250 | 10.82 | 1450 | 26.25 | |
300 | 11.25 | 1750 | 28.67 | |
400 | 13.12 | 2050 | 31.04 | |
550 | 16.08 | 2250 | 32.81 |
-----------------------------------------------------------------------------------------------------------------------------------------------------------
3.RG6 Coaxial Cable packing details:
1) Inner packing: 100m in PE film, 100m in plastic/wood spool, 305m/wood drum, 500m/wood drum
2) Outer packing: carton, wooden drum
3) Other packing available according to clients requests
10) OEM and customers designation are welcome.
11) RG6 specification for your reference:1.02CCS+4.57FPE+Al Foil+96*0.12Al-Mg+6.8PVC
