RG6 Coaxial Cable
USD $0.05 - $0.2
/ Kilometer
10 Kilometers(Min.Order)
- FOB ShenZhen
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Hongyan | |
| Model Number | Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Specifications
RG6 Coaxial Cable1.CE ISO RoHS
2.Quick Delivery
3.Stable High Quality

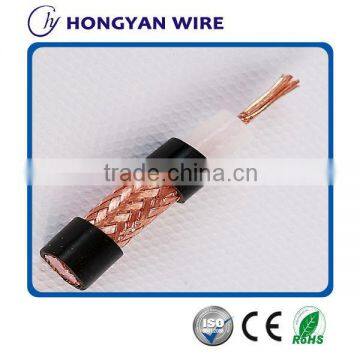

RG6 Coaxial Cable
Specification:
Inner Conductor: 1.02mm BC/CCA/CCS
Dielectric: FPEΦ4.57mm
Shield: AL/P foil + ALΦ0.16mm braiding
Jacket:PVCΦ6.91mm
Application:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
4) Multiplex telephony
5) Closed-circuit television surveillance system & radio vision system
6) Electronic warfare, aviation and other electronic devices
Options:
| 1)Conductor:Bare Copper, CCA,CCS are available |
| 2) Dielectric: Foam PE or Solid PE |
| 3) Al Foil: Bonded, Non-bonded, Single, Double |
| 4) Braiding Wire Material: Cu, Al-Mg, TC |
| 5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm are available |
| 6) Braiding Net: 48, 64, 72, 80, 96, 128 and more |
| 7) Coverage: 40%, 50%, 60%, 80%, 90% and more |
| 8) PVC Degree: 60, 65, 68, 70,75 |
| 9) Jacket :PE or PVC |
10) OEM and Customer's designation are welcome |
| 11)MOQ:10kilometers |
| 12)Type: |
Basic Characteristics:
| Nominal Impedance(Ω) | 75 | ||
| Nominal Velocity of Propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 50 | ||
| Speaker Test (VAC) | 4000 | ||
| SRL(dB) | 20 | 20 | |
Attenuation @68°F(20°C) | Frequency (MHz) | Attenuation (dB/100FT) | Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 | |
| 55 | 1.60 | 5.25 | |
| 187 | 2.85 | 9.35 | |
| 300 | 3.55 | 11.64 | |
| 450 | 4.40 | 14.43 | |
| 600 | 5.10 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.10 | 20.01 | |
| 1000 | 6.55 | 21.49 | |
| 1450 | 7.98 | 26.16 | |
| 1800 | 8.46 | 27.73 | |
| 2100 | 9.50 | 31.15 | |
| 2250 | 10.00 | 34.03 | |
| 3000 | 11.40 | 37.50 | |
