X2014x3000 economic gantry milling machine made in china

FOB Price

USD $54,500 - $56,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	X2014x3000 gantry milling machine
Type	Other, Gantry	CNC or Not	Normal
Voltage	Customer Requirement	Power(W)	7.5kW
Dimension(LWH)	7000x3850x3500mm	Weight	18000kgs
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

X2014x3000 gantry milling machine

Main Featurers

Such gantry milling machine has following features:

1. Gantry Milling Machine
2. ISO9001/CE certification
3. Swivel angle of milling head +-35 degree
4. Spindle motor power 7.5kw

Main Technical Data

Specifications	Unit	Parameter
X-travel	mm	3000
Y-travel	mm	1800
Z-travel	mm	1200
Vertical travel of side head	mm	500
Displacement distance of side head		350
Worktable size	mm	3000x1400
Max. weight of workpiece	kg	4000
T-slots(numbers x width x distance)	mm	7x28x210
Distance from vertical head nose to table surface	mm	0~1200
Distance from centerline of side head to table surface	mm	0~500
Vertical spindle speed	min-1	82~505
Max. output torque of vertical spindle	Nm	790
Taper of vertical spindle		ISO50 7:24 50
Taper of side head spindle		ISO50 7:24 50
Speed of side head	min-1	82-505
Max. output torque of side head	NM	790
X-axis fast speed	mm/min	1300
Y-axis fast speed	mm/min	890
Z-axis fast speed	mm/min	432
Vertical fast speed of side head		730
X-feed speed	mm/min	stepless (0~2620)
Y-feed speed	mm/min	65, 320, 890
Z--feed speed	mm/min	fast speed 432
Vertical feed speed of side head		50, 265, 730
Main motor power	kW	7.5
Motor power of side head	kW	7.5
Motor power of X-axis	kW	7.5
Motor power of Y-axis	kW	1.1
Motor power of Z -axis	kW	4
Feed motor power of side head		0.4
Overall dimensions	mm	7000x3850x3500
Weight	kg	18000

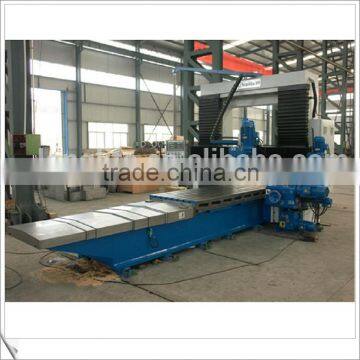

Real Photos:
