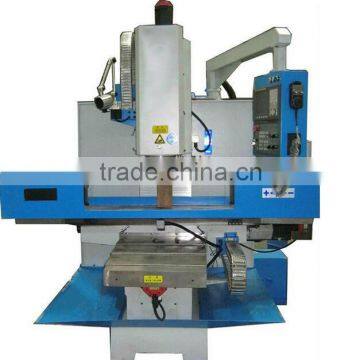

S2473 simple cnc vertical milling machine for sale
- Dalian/Qingdao China
- T/T Credit Card PayPal
You May Like
-
X2014x3000 economic gantry milling machine made in china
-
X6325C/D CE vertical turret milling machine
-
CE Certificated Strong Universal Vertical Milling Machine Hot-sale X5040
-
CE Vertical Milling Machine at Lower Price-Good Quality
-
Economic Gantry Milling Machine Lower Price-Good Quality with CE
-
S2063 bed type cnc vertical milling machine
Product Details
| Condition | New | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | S-2473 simple cnc vertical milling machine | |
| Type | Vertical | CNC or Not | CNC | |
| Voltage | 3Ph/220V 380V 400V 415V 440V 480V 50/60Hz | Power(W) | 7.5kW | |
| Dimension(L*W*H) | 2900x3150x2900mm | Weight | 6000kgs | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
S2473 cnc vertical milling machine technical data
1. Main parts are original from TAIWAN;
2. GERMANY technology, main technology guided by GERMANY engineer;
3. Providing machine as OEM form for GERMANY Company as long term;
4. Full production is supervised by TAIWAN engineers;
5. Strictly according to CHINA National Standard and CE Safety Standar;
6. CE Certificate;
Such cnc vertical milling machine has following features:
1. widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring;
2. high quality with competitive price;
3. CE Standard and CE Certificate;
4. Taiwan original 3 axes Taiwan leadscrews make sure our milling machines performance better
than others.
5. The Taiwan original spindle adopted so that to make sure the cutting can be very
fluently and effiecient.
5. About the guideway, we choose two type guideway linear guideway and square guideway for different model:
The linear guideway get the high efficiency and high speed,
The square guideway can load more than others.
Specifications | Unit | Parameter |
Table size (L × W) | mm | 1854x610 |
Table loading capability | kg | 1500 |
T-slot (Numbers × Width) (b/t slots) | mm | 18x5 |
X Travel | mm | 1500 |
Y Travel | mm | 700 |
Z Travel | mm | 700 |
Rapid speed of X/Y/Z | m/min | 10000 |
Max. feed speed (X/Y/Z) | mm/min | 4000 |
Spindle speed | rpm | 40~6000 |
Spindlenose |
| BT40 |
Spindle motor | kW | 7.5 |
Servo motor for X/Y/Z | kW | 208 |
Spindle quill diameter | mm | φ150/φ155 |
Distance from spindle to column surface | mm | 80~780 |
X- axis of ball screw | mm | Φ40×10 P4 Double nuts |
Y- axis of ball screw | mm | φ40×10 P4 Double nuts |
Z- axis of ball screw | mm | φ40×10 P4 Double nuts |
Positioning accuracy | mm | 0.015 |
Repeatability |
| 0.008 |
Machine weight (semi-closure guard) |
| 6000 |
Packing dimension (semi-closure guard) |
| 2900×3150×2900 |
No. | Item | Note |
| Cutting fluid cycling device | yes |
| Automatic lubricating device with regular time and quantity | yes |
| Working lamp | yes |
| spindle air flow | yes |
| 3 colors caution lamp | yes |
| Leveling screw and block | yes |
| Operation manual | yes |
| Tool box | yes |
| Semi-cover |
|
kinds of colors for your choice/can be customized
