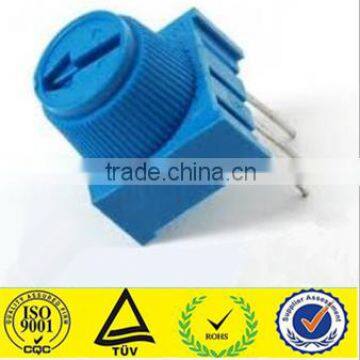

volume control 3386MP potentiometer 0.5W Single turn trimmer potentiometer

FOB Price

USD $0.05 - $0.09 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	BONENS
Model Number	3386MP	Type	Other, Trimming Potentiometer, X
Technology	Cermet	Resistance	10~5M
Resistance Tolerance	±10%	Rated Power	0.5W
Max. Operating Voltage	250V	Operating Temperature	-55 ~ +12

1. 3386 Cermet Trimmer Potentiometer,Single-turn
2. RoHS ISO compliant
3. free sample fast delivery
4. welcome trial order

1. 8mm Long knob potentiometers, trimming, 0.5W

volume control 3386MP potentiometer 0.5W Single turn trimmer potentiometer

2. Specifications:

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	250V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	280°±10°
	Starting torque	≤20mN.m
	Stopper torque	≤50mN.m
	Standard package	50 pcs /tube

6. Main certificates:

Welcome to check with me about the model you want~~
