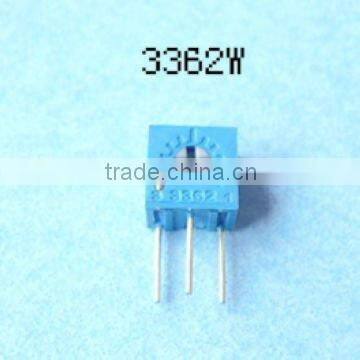

100K Ohm 3362W-104 3362 P Trim Pot Trimmer Variable Resistor Potentiometer (Pack Of 50)

FOB Price

US$ 0.01 - 0.1 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	Bonens
Model Number	3362	Type	Other, Trimming Potentiometer, R
Technology	Cermet	Resistance	10Ω~5MΩ
Resistance Tolerance	±10%	Rated Power	0.25W(70℃,300V max)
Max. Operating Voltage	500V(DC or AC Peak Value	Operating Temperature	-55℃~+125℃

100K ohm 3362W-104 3362 P Trim Pot Trimmer Variable Resistor Potentiometer (Pack Of 50)

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ
	Electrical endurance (0.25W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	260°±10°
	Starting torque	≤20mN.m
	Stoper torque	≥50mN.m
	Standard package	50 pcs /tube
