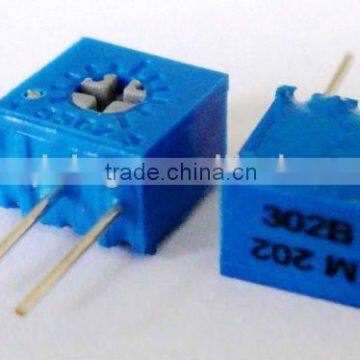

3266 mini trimmer potentiometer 4.7K 10K, Single turn trimming potentiometer

Specifications

Electrical Characteristics

Range of nominal resistance                  : 10Ω~5MΩ

Resistance tolerance                            : ±10%

Terminal resistance                              : ≤±1%R or 2Ω

Contact resistance variation (CRV)        : ≤±1%R or 3Ω

Insulation resistance                           : ≥ 1GΩ (100V AC)

Withstand voltage                               : 600V (DC or AC peak value)

Effective electrical travel                      : ≥70% of mechanical travel

Environment Characteristics

Rated power consumption                          : 0.25 W

Temperature range                                       : -55 °C~ + 125 °C

TCR                                                                   : ±250×10^-6/°C

Collision (390m/S², 4000 times)                : ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h)              : ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation                                    : ΔR≤±2%R, ΔUab/Uac≤±2%R

Climate category (IEC68-2-2)                       : ΔR≤±(5%R+0.1Ω),Insulation Resistance≥100MΩ

Mechanical endurance (200cycles)             : ΔR≤±(10%R+0.5Ω),CRV≤±3%R or 5Ω

Physical Characteristics

Total mechanical travel                                 : 12±2 cycles

Starting torque                                                : ≤25mN.m

Standard package                                          : 50 pcs /tub
