trimmer potentiometer smd precision trimmer potentiometers 3266

FOB Price

USD $0.01 - $0.15 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	Bonens
Model Number	3266y	Type	Other, Trimming Potentiometer, Y
Technology	Ceramic Composition	Resistance	10Ω~5MΩ
Resistance Tolerance	±10%	Rated Power	0.25W(70℃,300V max)
Max. Operating Voltage	600V(DC or AC)	Operating Temperature	-55℃~+125℃

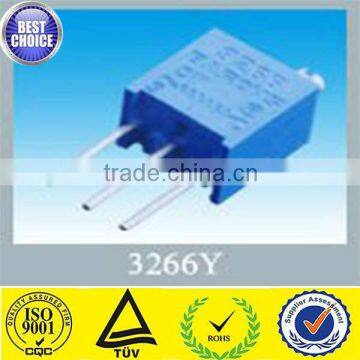

1,3266Y ceramic trimmer potentiometers
2,ROHS compliant ISO9001-2008 manufactory
3,we supply to the military
4.free sample

266Y trimmer potentiometers,1K ohm

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	600V (DC or AC peak value)
	Effective electrical travel	≥70% of mechanical travel

Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ
	Electrical endurance (0.25W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	12±2 laps
	Starting torque	≤25mN.m
	Standard package	50 pcs /tube

Availble pots. part numbers: 3296, 3362, 3329, 3386, 3006, 3323.3590, 3540, 3266, etc
