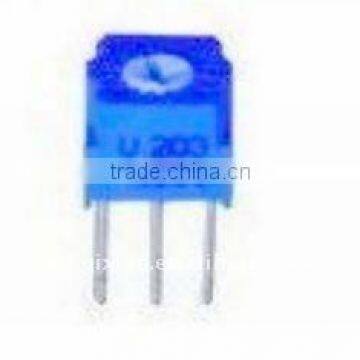

3323 series single turn preset potentiometers

FOB Price

US$ 0.01 - 1.5 / Piece

1000 Pieces(Min. Order)

Port guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	Bonens
Model Number	3323, 3323	Type	Trimming Potentiometer
Technology	Cermet	Resistance	10Ω~5MΩ
Resistance Tolerance	±10%	Rated Power	0.5W
Max. Operating Voltage	300V	Operating Temperature	-55℃~+125℃

Product Description

3323 Trimming potentiometers ceramc glaze,single-turn

Type: P,U,W,S,V

             Electrical Characteristics

(Standard Resistance Range) :10Ω-2MΩ
(Resistance Tolerance)            : ±10,±20
(Terminal Resistance)              :≤1R or 2Ω
(Contact Resistance Variation :≤3R or 3Ω
(Insulation Resistance)R1        :≥1GΩ
(Winthstand Voltage)                  :500V
(Effective Electrical Travel)         :≥200°

            Envlonment Characteristics

(Rated Power)                               :0.5W,125 OW
(Temperature Range)                  :-55°C~+125°C
(Temperature Coefficent)            :±250,±100ppm
(Temperature Variation)R            :≤±3R,(UabUac)≤±2
(Steadydamp-heat)                        : R≤±(3%R±0.1Ω,R1≥100MΩ

Physical Characteristics

(Total Machanical Travel)250°±10°
(Staring Torque)≤20mN·m
(Clutch Torque)≥50mN·m ......
