50 0hm 101, 502, 503, 504 ohm single turn 3386Y trimming potentiometer
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
trimmer potentiometer smd precision trimmer potentiometers 3266
-
precision trimmer potentiometers miniature potentiometer 10 turns
-
3266Z trimmer potentiometers,1K multi-turn potentiometer 3266w
-
3296W through hole potentiometer
-
3296W-200K Trimmer Potentiometer multi-turn cermet
-
3296Y 100 ohm 500 ohm, 1k(102), 10k(103), 100k(104) 500k(504) trimmer Potentiometers
Product Details
| Place of Origin | Sichuan, China | Brand Name | Bonens | |
| Model Number | 3386Y, Y | Type | Trimming Potentiometer | |
| Technology | Ceramic Composition | Resistance | 10Ω~5MΩ | |
| Resistance Tolerance | ±10% | Rated Power | 0.5W | |
| Max. Operating Voltage | 500V | Operating Temperature | -55℃~+125℃ |
Product Description
Specifications
1.payment:L/C,D/A,D/P,T/T,Western Union and others2.delivery time:1-4 das
3.Supply capacity:10000000 a month
4. TUV audited

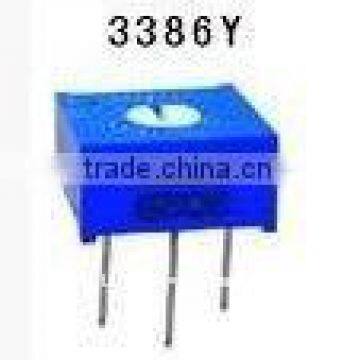

trimmer potentiometer 3386Y, single turn, 50K 10K 1K 5K...
Electrical Characteristics
Range of nominal resistance: 10Ω~5MΩ
Resistance tolerance: ±10%
Terminal resistance: ≤±1%R or 2Ω
Contact resistance variation (CRV): ≤±1%R or 3Ω
Insulation resistance: ≥ 1GΩ (100V AC)
Withstand voltage: 500V (DC or AC peak value)
Effective electrical travel≥250°
Environment Characteristics
Rated power: 0.5W (70°C, 300V max)
Temperature range: -55°C~+125°C
TCR: ±250×10-6/°C
Collision (390m/S2, 4000 times): ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles): ΔR≤±2%R, ΔUab/Uac≤±2%R
Climate category (IEC68-2-2): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ
Electrical endurance (70°C, 0.25W, 1000h): ΔR≤± (5%R+0.1Ω), CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ
Physical Characteristics
Total mechanical travel: 300°±10°
Starting torque: ≤20mN.m
Stopper torque: ≥75mN.m
Standard package: 50 pcs /tube
Our company specializing in the production of potentiometer 3296, 3362, 3329, 3386, 3266, 3006, 3323,3590,RIG high-power resistors , etc
