Home > Products > Trimmer Potentiometer > 3362P 6mm Trimmer Potentiometer

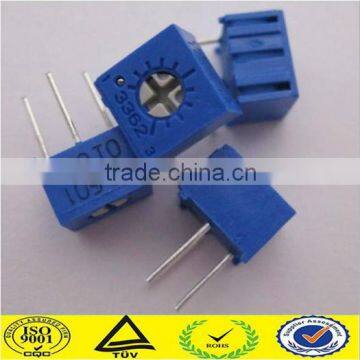

3362P 6mm Trimmer Potentiometer
- guangdong shanghai Ningbo hongkong
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | Bonens | |
| Model Number | 3362P | Type | Other, Trimming Potentiometer, P | |
| Technology | Cermet | Resistance | 10Ω~5MΩ | |
| Resistance Tolerance | ±10% | Rated Power | 0.25W(70℃,300V max) | |
| Max. Operating Voltage | 500V(DC or AC Peak Value | Operating Temperature | -55℃~+125℃ |
Product Description
6mm trimmer potentiometer
1. Single turn trimming trimmer potentiometer
 | |
| |
2.Drawing of 3362P
|
3.Specifications of 3362P cermet trimmer potentiometer
potentiometer Electrical Characteristics
Range of nominal resistance: 10Ω~5MΩ Resistance tolerance: ±10% Terminal resistance: ≤±1%R or 2Ω Contact resistance variation (CRV): ≤±1%R or 3Ω Insulation resistance: ≥ 1GΩ (100V AC) Withstand voltage: 500V (DC or AC peak value) Effective electrical travel≥200°
potentiometer Environment Characteristics
Rated power: 0.25W (70°C, 300V max) Temperature range: -55°C~+125°C TCR: ±250×10-6/°C Collision (390m/S2, 4000 times): ΔR≤±1%R Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS Temperature variation (-55°C/30min, +125°C/30min, 5 cycles): ΔR≤±2%R, ΔUab/Uac≤±2%R Climate category (IEC68-2-2): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ Electrical endurance (70°C, 0.25W, 1000h): ΔR≤± (5%R+0.1Ω), CRV≤±3%R or 5Ω Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω Steady damp heat (IEC68-2-3, Ca, 96h): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ
potentiometer Physical Characteristics
Total mechanical travel: 260°±10° Starting torque: ≤20mN.m Stopper torque: ≥50mN.m Standard package: 50 pcs /tube |
4.
5.
6.
7. For more info. of potentiometer 3362p, pls contact us:
Skype ID:
QQ ID: 865125858
Tel.:+ 86-18780289151
Other potentiometers we produce:
3296, 3362, 3329, 3386, 3266, 3006, 3323.3590, 3540, PT15, PT10, RV24, R1001 etc.
welcome inquiries!!
