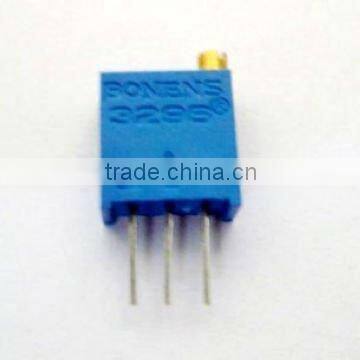

3296 Trimmer Potentiometer,Multi-turns,Glass Glaze,W,Y,X,Z,P

FOB Price

US$ 0.01 - 0.1 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	Bonens
Model Number	3296	Type	Other, Trimming Potentiometer, W,Y,X,Z,P
Technology	Other, Glass Glaze	Resistance	10Ω~5MΩ
Resistance Tolerance	±10%	Rated Power	0.5W(70℃,300W max)
Max. Operating Voltage	640V(DC or AC peak value)	Operating Temperature	-55℃~+125℃

1. Multi-turns;
2. Correspond to GB/T5729-94;
3. Correspond to SJ20217-92;
5. Special requirements are appreciated

3296 Trimmer Potentiometer,Multi-turns,Glass Glaze,W,Y,X,Z,P

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	640V (DC or AC peak value)
	Effective electrical travel	≥70% of mechanical travel

Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	12±2 lap
	Starting torque	≤25mN.m
	Standard package	50 pcs /tube(3296W,3296Y)
		40 pcs /tube(3296X,3296Z,3296P)
