Home > Products > Trimmer Potentiometer > single turn Potentiometers 500 ohm 6mm cermet Trimmer potentiometer 3362

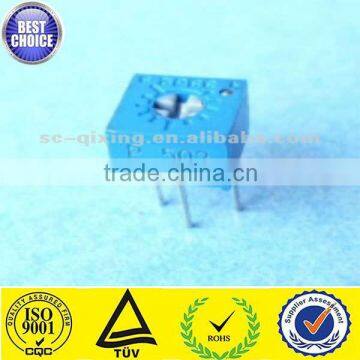

single turn Potentiometers 500 ohm 6mm cermet Trimmer potentiometer 3362

FOB Price

USD $0.04 - $0.05 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	Bonens
Model Number	3362P	Type	Other, Trimming Potentiometer, U,R,P,M,W,S
Technology	Ceramic Composition	Resistance	10Ω~5MΩ
Resistance Tolerance	±10%	Rated Power	0.25W(70℃,300V max)
Max. Operating Voltage	500V(DC or AC Peak Value	Operating Temperature	-55℃~+125℃

single turn Potentiometers 500 ohm 6mm cermet Trimmer potentiometer 3362

3362 single turn cermet Trimmer Potentiometers 500 ohm

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ
	Electrical endurance (0.25W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	260°±10°
	Starting torque	≤20mN.m
	Stoper torque	≥50mN.m
	Standard package	50 pcs /tube
