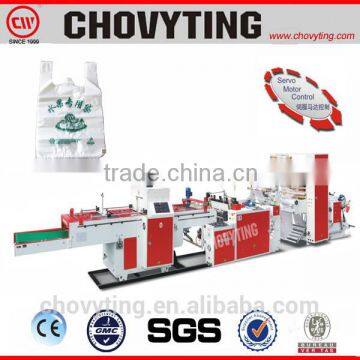

Automatic supermarket shopping bag/grocery bag making machine price

Brief Introduction

This is a practical high yield single line T-shirt bag making machine.Fully automatic operation,customers can effectively reduce the cost of investment and labor workforce.

Main Features

1)Single line width range practical design.
2)Unwinding tension adopts fully automatic tension control.
3)Unwinding roll with big diameter option save material changing time.
4)With feeding automatic correction design.
5)New design of punch device,able to adapt to a longer length of t-shirt bag.

Optional

1.Single sheet film folding unit(hydraulic auto loading device)

2.Double sealing knife device

3.Bottom sealing knife device

Air cylinder unwind device

1)Unwinder adopts air cylinder automatic load design.
2)Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.

3)Unwinder part has the EPC and automatic tension control.

1)This device special for this high speed model.

2)When roll film feeding so fast that the film will move little left and right, with this EPC device to be control the film feeding corrected to the right position.

Printing photocell

 1)The uniquely designed printing bag control system enhance the productivity,and it is easy to operate.

Sealing and cutting knife device

1)Sealing knife “turnover” device ,which easy to clean the knife ,which is better to keep the maintenance easy.

2)The whole set of bags has design of swaying ,no paste between two bags mouth.

Hydraulic air cylinder punch

1)With 5tons hydraulic air cylinder punch from Taiwan.

2)The motor of clip for clamp the bag is Ac inverter motor control 1.5KW,which makes much more tidy.

3)Automatic collect bags and finish stack bags with double fold device.

Automatic collect table
