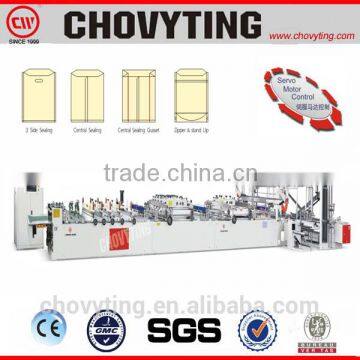

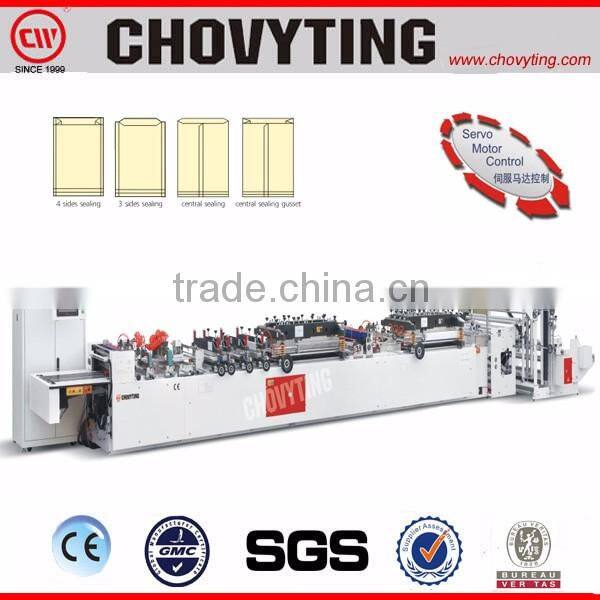

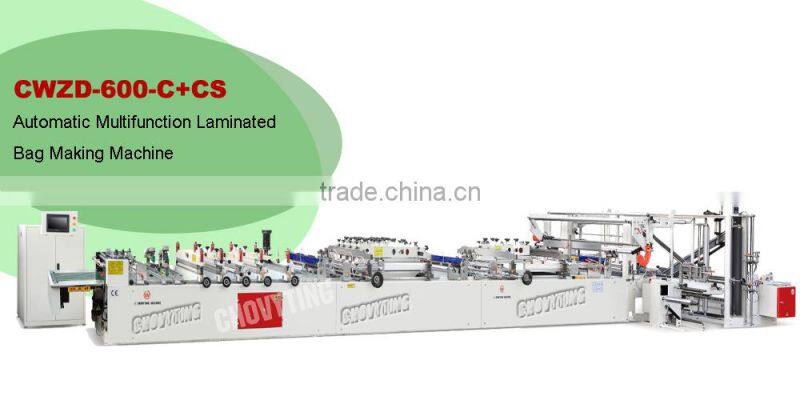

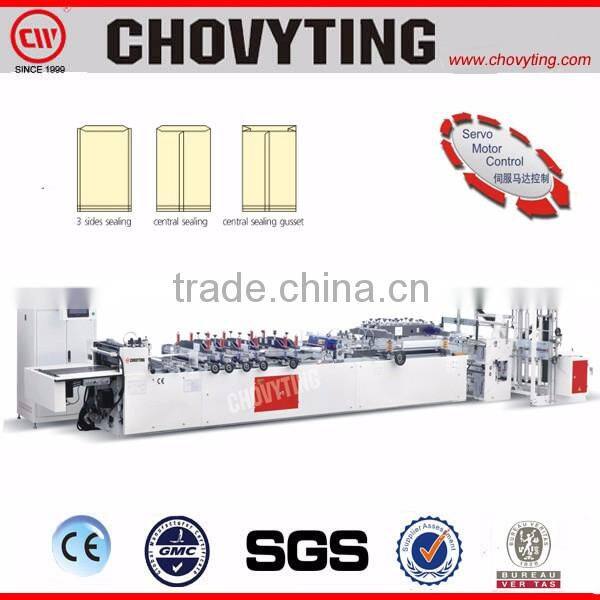

High Speed Laminating Pouch Making Machinery/stand up Ziploc Pouch Bag Making Machine

Product Application

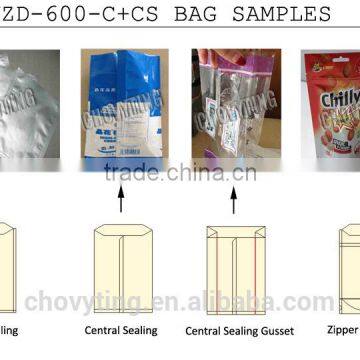

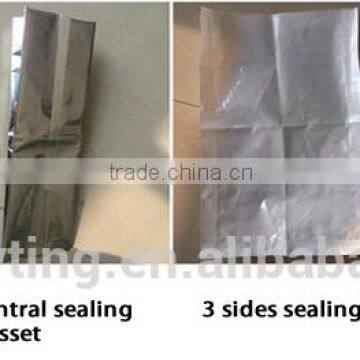

Newly design multifunction laminated bag making machine,with many difference type bag making,such as 3 sides sealing bag,stand up bag,zipper bag,center sealing bag.Easy to operate,fast to change different type bag making device.

Main Features

1) Large human-computer interface screen control,automatic design.

2) Newly design with 4 pcs servo motor feeding,high speed produce film and no shake.

3) Automatic control tension of unwind and stand up indirect materials.

Optional

1.Double unwinder device

2.Handle hole puncher

3.Industrial chiller

Technical Parameter

Unwinding device

 1)With automatic tension monitor

 2)Equipped with plug type and pneumatic locking device

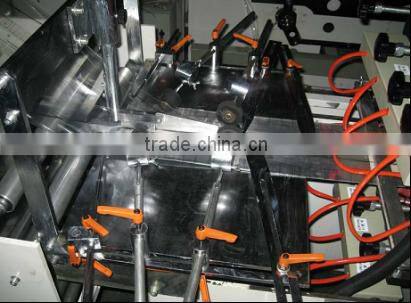

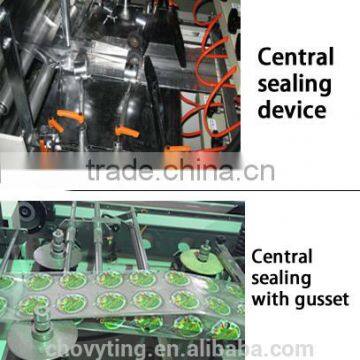

Central sealing forming device

Central sealing bag with round gusset device

Third film inserted stand up device

Zipper ultrasonic device

1)The zipper ultrasonic device make the zipper seal much more stronger with a independent controller.

Vertical sealing device

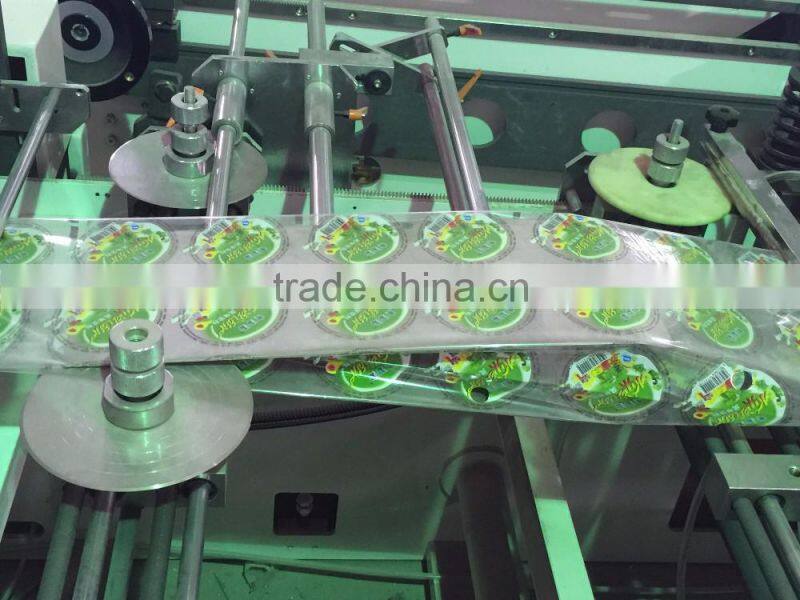

Film traction

1)Photoelectric sensor with integrated control Proximity Switch.

Bottom sealing device

1)Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.

Automatic feeding device from conveyor belt

Control box
