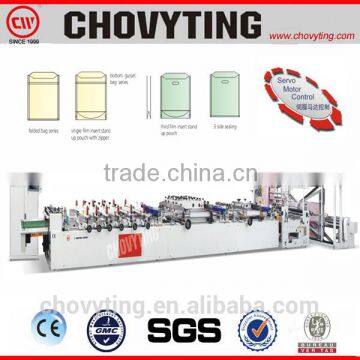

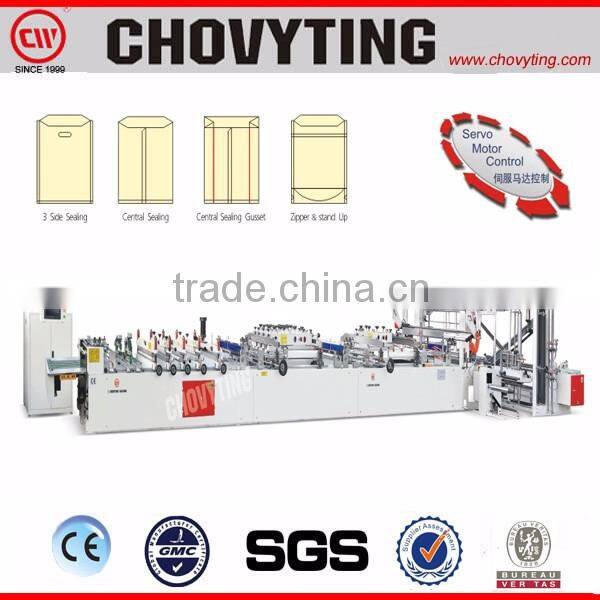

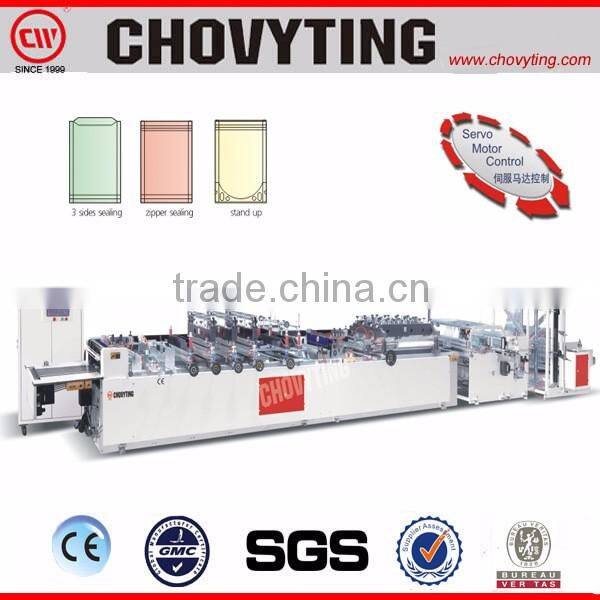

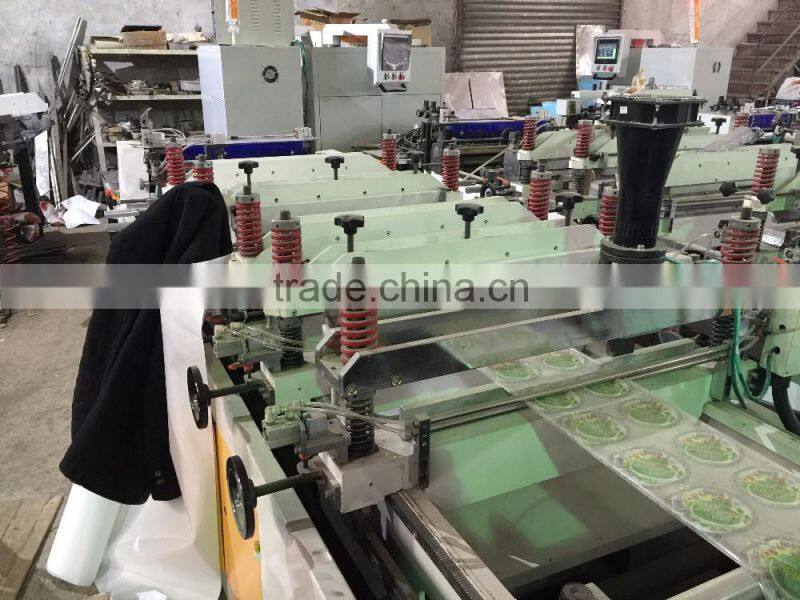

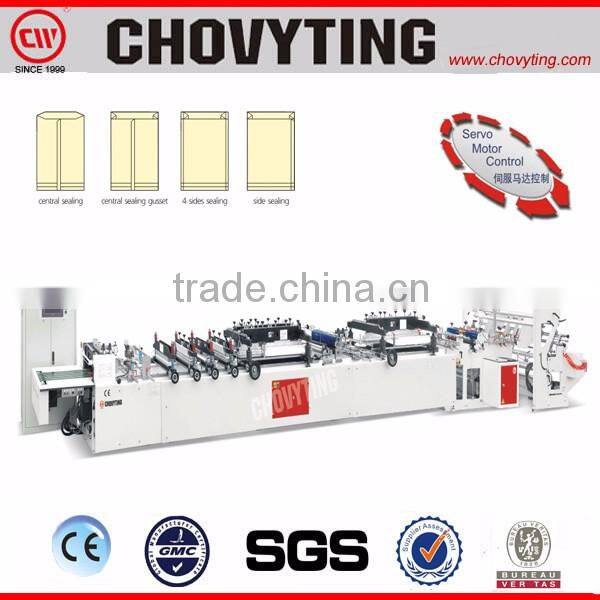

Chovyting automatic plastic ziploc stand up paper bag making machine

Product Application

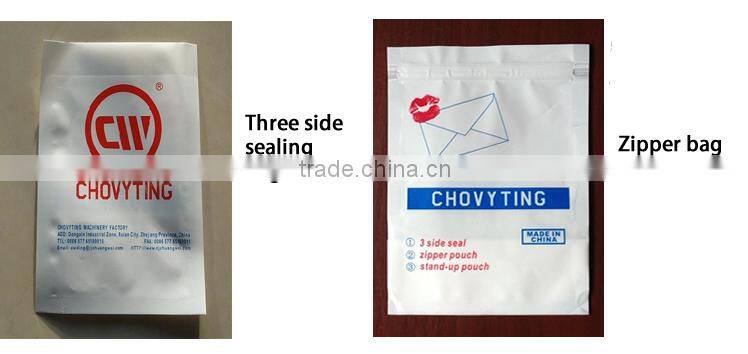

Newly design for producing America laminated bag(single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular from America.

Main Features

1) Folding ,punch,bottom gusset and sealing automatic design

2) Newly design feeding structure,high speed feeding no shake

3) Special design bottom gusset device,easily to operate

4) Double layers unwinding design,suitable for multi-function laminated bag

5) Newly design zipper and stand up device

6) Bottom gusset stand up continuous punch device

Optional

1.Air cylinder automatic loading device

2.Handle hole puncher

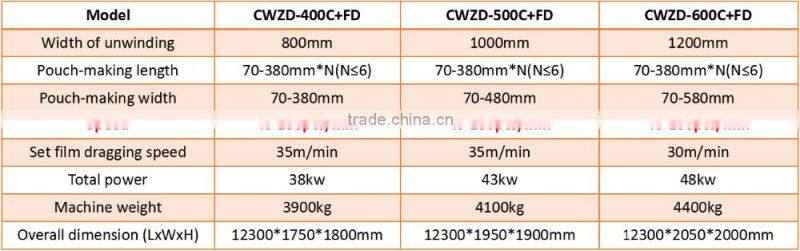

Technical Parameter

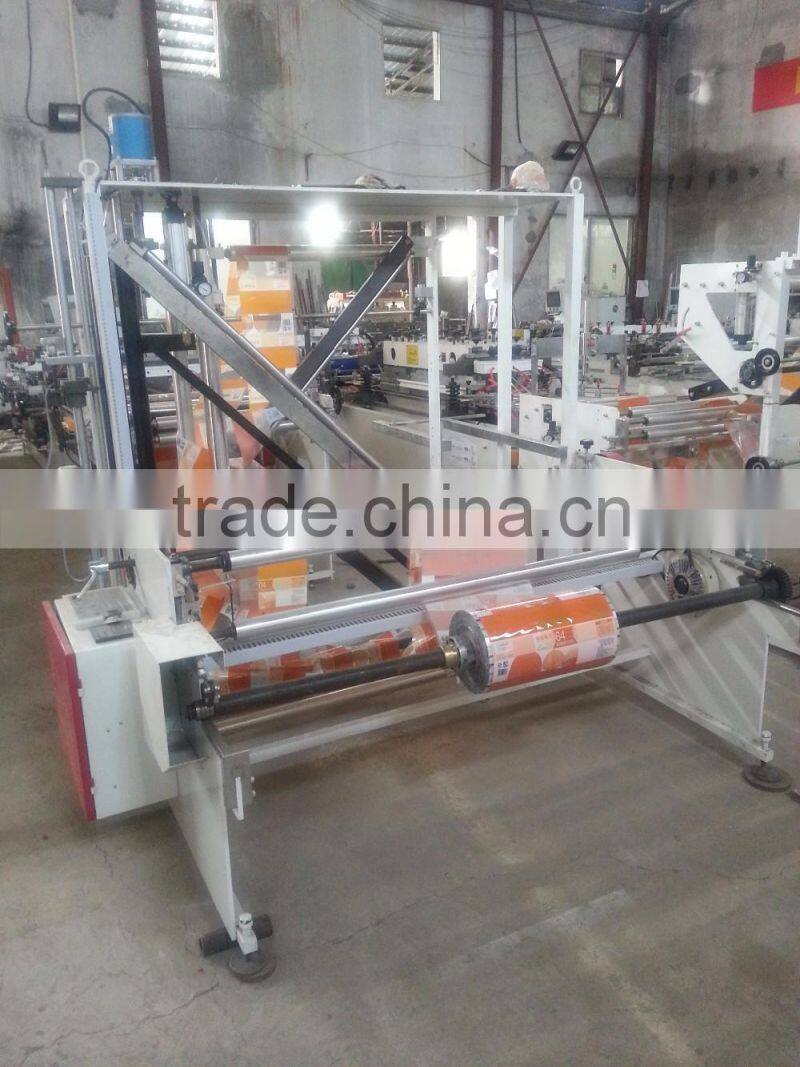

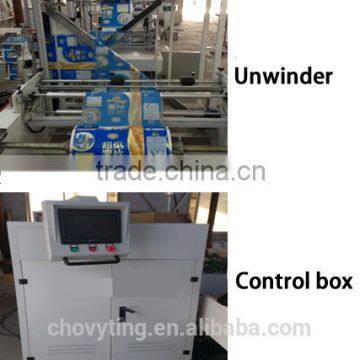

Unwinding device

 1)With automatic tension monitor

 2)Equipped with plug type and pneumatic locking device

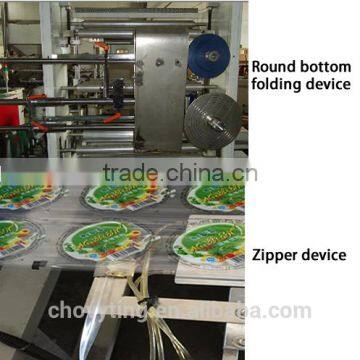

Round bottom gusset device

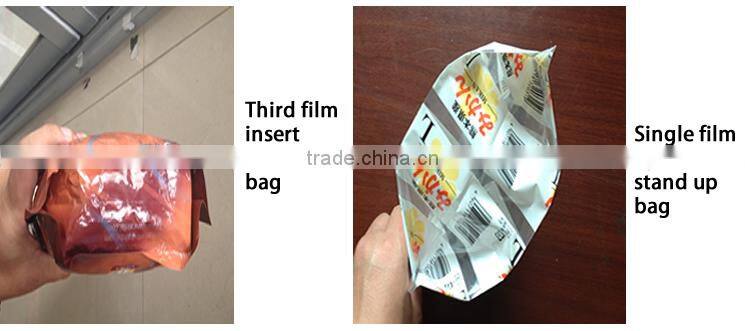

1)The single film of stand up bag is folden by the device,the bottom not be cutted.

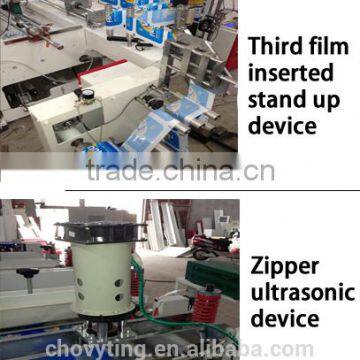

Third film inserted stand up device

1)This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.

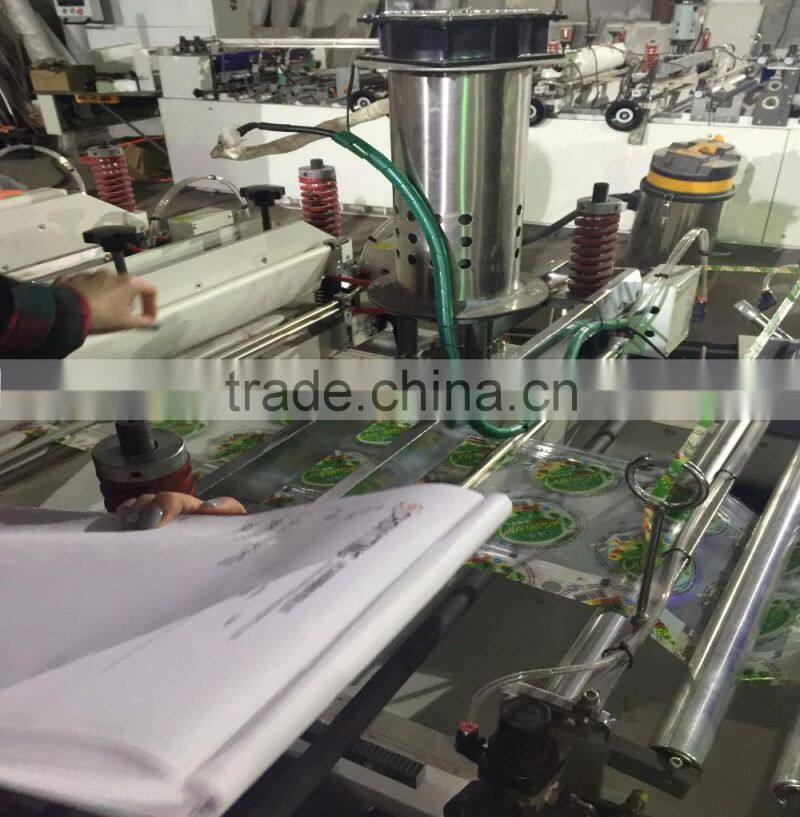

Zipper ultrasonic device

Vertical sealing device

1)Vertical-sealing for zipper adopts 1 group for heating fluctuation.

Film traction

1)photoelectric sensor with integrated control Proximity Switch

Bottom sealing device

1)Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.

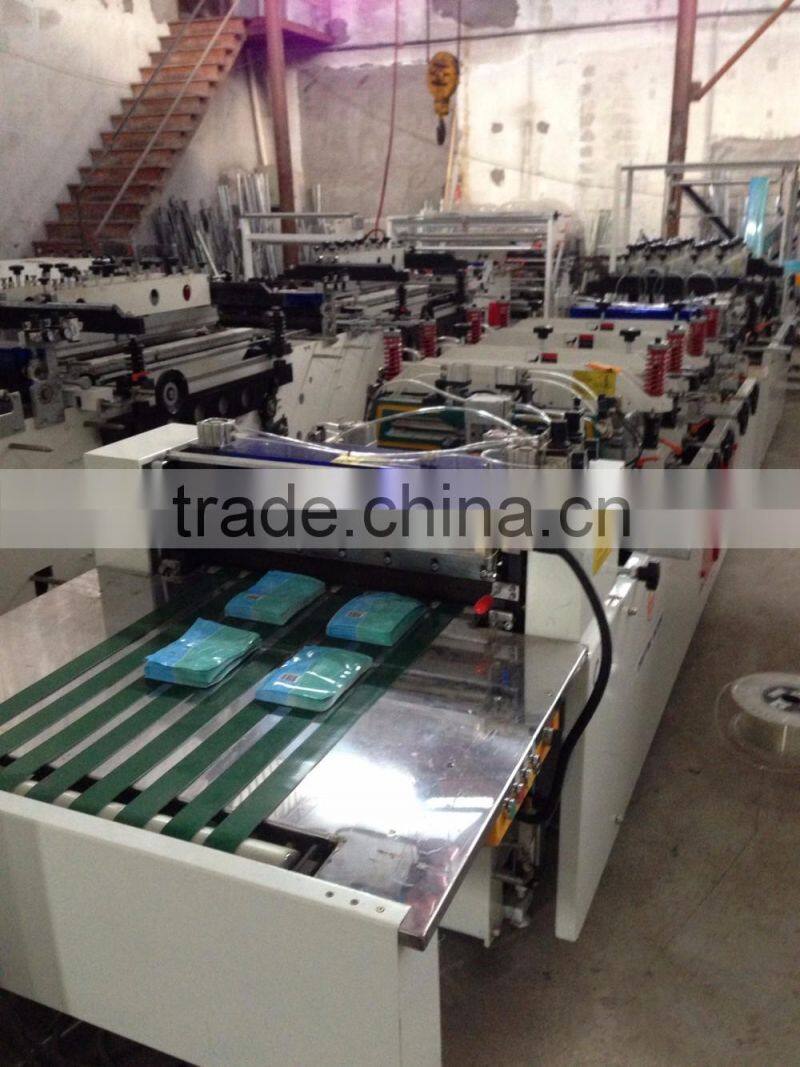

Automatic feeding device from conveyor belt

Control box

1)The control box is in control of whole machine with PLC from Japan with an automatic human-computer interface screen.
