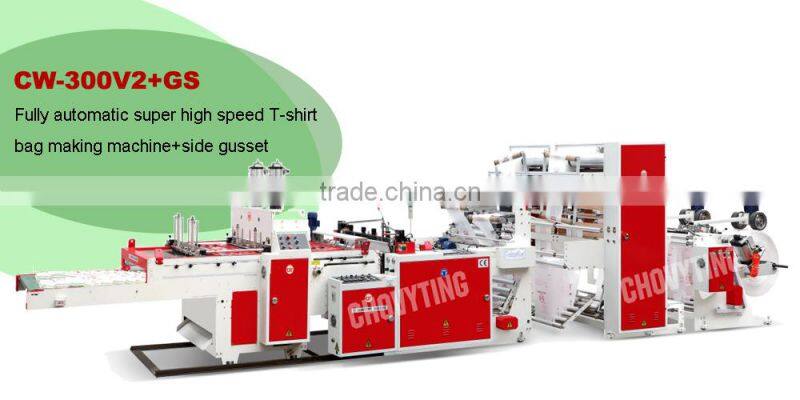

Automatic High Speed Two Lanes Plastic T-shirt Bag With Gusset Bag Making Machine

Brief Introduction

New designed super high speed T-shirt bag making machine,is specially for making T-shirt bags,which it two lines and three lines high speed production,easy to operate,high output,special servo motor driving.

Main Features

1)Unwinding tension with AC inverter automatic control.
2)Easy operate and adjustment side fold device.
3)Turnover sealing knife,easy clean design.
4)The whole set of bags has design of swaying,no paste between two bags mouth.
5)Multiterm automatic warning,automatic stop design.

Optional

1.Two line hot slitting device +ST2 ( 2 line printing bags )
2.Three line hot slitting device +ST3 ( 3 line printing bags )

Technical Parameter

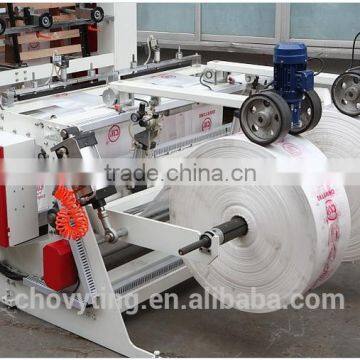

Air cylinder unwind device

1)Unwinder adopts air cylinder automatic load design.

2)Unwinding shaft adopts heavy-chain air shaft.
3)Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.

4)Unwinder part has the EPC and automatic tension control.

Post gusset device

1)Authentic post gusset design to provide the quick,easy and accurate adjustment on the gusseting depth and the edge of gusseting.

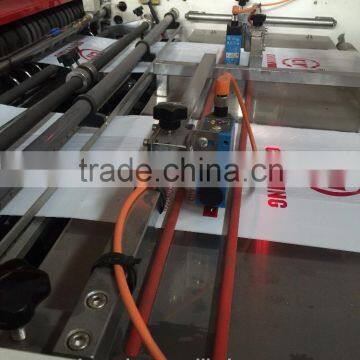

Automatic EPC control

1)This device special for this high speed model.
2)When roll film feeding so fast that the film will move little left and right, with this EPC device to be control the film feeding corrected to the right position.
3)This EPC system will enhance the productivity of machine.
4)One set EPC system to control two lines.

1)The uniquely designed printing bag control system enhance the productivity,and it is easy to operate.

Sealing and cutting knife device

 1)Sealing knife “turnover” device ,which easy to clean the knife ,which is better to keep the maintenance easy.

 2)The whole set of bags has design of swaying ,no paste between two bags mouth.

Hydraulic air cylinder punch

1)With 5tons hydraulic air cylinder punch from Taiwan.
2)The motor of clip for clamp the bag is Ac inverter motor control 1.5KW,which makes much more tidy.
3)Automatic collect bags and finish stack bags with double fold device.

Automatic collect table

1)Collect table adopts automatic collecting bag feeding.
2)With gripper device,which is controlled by a AC inverter motor 1.5kw,which makes bag much more tidy.
