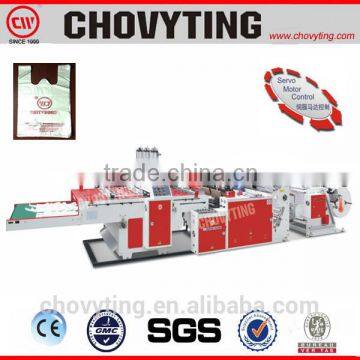

High speed t-shirt shopping bag fully automatic plastic bag making machine price

Brief Introduction

This model is specially for single volume T-shirt bag making.The whole machine adopt fully automatic production with easy operational socket type IC electric circuit and single Photocell tracking ,which is the best choice for high output production of T-shirt bags.

Main Features

1) New designed 3 unwinding and 3 production lines system.
2) 3 unwindings individually adopt auto tension controller.
3) Unwinding roll with big diameter option save material changing time.
4) 3 lines sealing knives use individual control on the temperature.
5) With individual EPC control function for the 3 lines.

6) With single Photocell functional for one line printed bag making.

Air cylinder unwind device

1)Unwinder adopts air cylinder automatic load design.

2)Unwinding shaft adopts heavy-chain air shaft.
3)Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.

4)Unwinder part has the EPC and automatic tension control.

1)This device special for this high speed model.

2)When roll film feeding so fast that the film will move little left and right, with this EPC device to be control the film feeding corrected to the right position.

Sealing and cutting knife device

 1)Sealing knife “turnover” device ,which easy to clean the knife ,which is better to keep the maintenance easy.

Hydraulic air cylinder punch

1)With hydraulic air cylinder punch from Taiwan.
2)The motor of clip for clamp the bag is Ac inverter motor control 1.5KW,which makes much more tidy.
3)Automatic collect bags and finish stack bags with double fold device.

Automatic collect table

1)Collect table adopts automatic collecting bag feeding.
