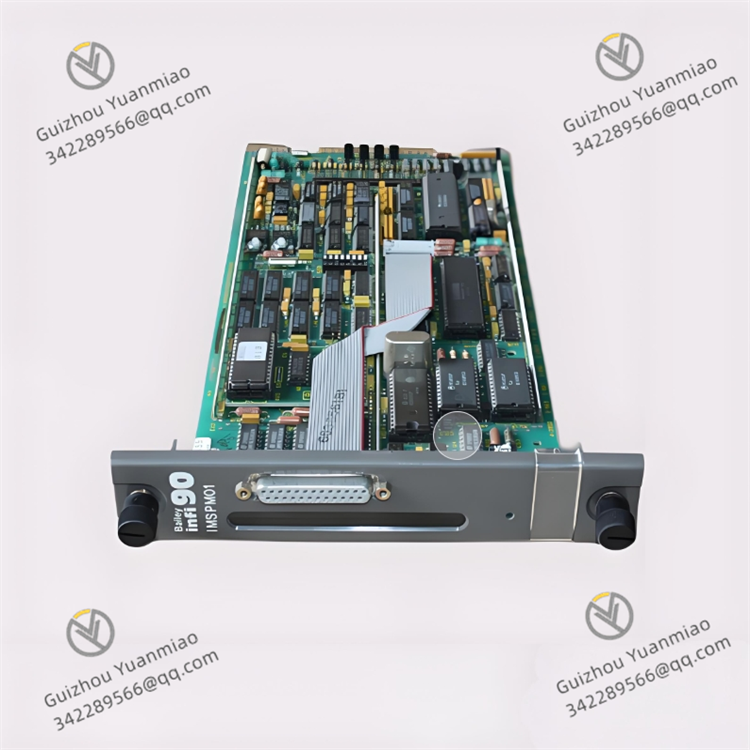

ABB Bailey IMSPM01 Serial Port Module

Overview

ABB Bailey IMSPM01 is a multi-functional interface module belonging to the ABB Bailey series. It mainly undertakes the important responsibilities of signal conversion and protocol conversion in industrial automation control systems, and serves as a key bridge connecting different types of equipment and control systems. It can convert specific types of signals from the field (such as pulse signals, frequency signals) into standard signals recognizable by the control system, and at the same time support the conversion of multiple communication protocols to realize seamless data interaction between different equipment and systems. With its flexible signal processing capability and reliable protocol conversion function, this module is widely used in industrial fields such as electric power, chemical industry, and metallurgy, providing strong support for improving the compatibility and data intercommunication of industrial automation systems, and ensuring the coordinated and efficient operation of various equipment in the production process.

Core Parameters

•


• Signal Processing Types: Supports multiple types of input signals, including pulse signals (such as pulse signals output by speed sensors), frequency signals (usually in the range of 0-10kHz), and some analog signals (such as 4-20mA current signals). It can adapt to the signal output characteristics of different on-site equipment and meet diverse signal acquisition needs.

• Conversion Accuracy: The signal conversion accuracy is high, and the conversion error for pulse signals and frequency signals can be controlled within ±0.1%, ensuring that the converted signals can accurately reflect the characteristics of the original signals, providing a reliable data basis for the control system. It is suitable for scenarios with high requirements on signal accuracy, such as equipment speed monitoring.

• Response Time: The response speed to input signals is fast, with a typical response time of less than 1ms, which can quickly capture the instantaneous changes of signals and feed them back to the control system in real time, meeting the requirements for signal real-time performance in industrial production. For example, in the speed monitoring of high-speed rotating equipment, it can timely reflect the fluctuation of speed.

• Communication Interfaces: Equipped with multiple communication interfaces, including signal input interfaces connected to on-site equipment and bus interfaces (such as the local bus of the ABB Bailey series) for communication with the control system. Some models also support Ethernet interfaces. The communication rate varies according to the interface type, and the local bus communication rate can reach hundreds of kilobits per second, ensuring the efficiency of data transmission.

• Power Requirements: The working power supply is 24V DC, with low power consumption during normal operation, and the current is about 50-100mA. It has a wide power supply adaptation range (18V DC-30V DC) and can operate stably in an environment with industrial power voltage fluctuations. The module integrates an overvoltage protection circuit to improve the safety of power supply use.

• Environmental Adaptability: The operating temperature range is 0℃-60℃, which can work stably in the common temperature environment of industrial workshops; the relative humidity is 5%-95% RH (non-condensing), which can adapt to humid production environments such as paper mills and water treatment plants. It also has a certain anti-electromagnetic interference capability and can maintain stable performance in complex electromagnetic environments.

• Physical Specifications: Adopts a compact modular design with small size (usually about 100mm × 80mm × 30mm in length × width × height) and light weight (about 200g). It is suitable for installation in standard racks or control cabinets of the ABB Bailey series, saving installation space and facilitating system integration and maintenance.

Functional Features

•


• Multi-signal Type Adaptation: It has strong signal adaptation capability and can condition and convert input signals with different amplitudes and frequencies without additional signal conditioning equipment, simplifying system wiring and reducing users' equipment investment costs. For example, it can directly access pulse signals output by speed sensors of different models and convert them into unified standard signals for transmission to the control system.

• Protocol Conversion Function: Supports the conversion of multiple industrial communication protocols, such as converting the dedicated protocols of on-site equipment into protocols supported by ABB Bailey series DCS systems (such as INFI 90 protocol), realizing seamless connection between equipment of different brands and with different protocols and the control system, solving the common "information island" problem in industrial fields, and improving the compatibility and scalability of the system.

• Flexible Parameter Configuration: Users can flexibly set the signal input range, conversion ratio, communication parameters, etc. of the module through dedicated configuration software to adapt to different application scenarios. For example, when monitoring speed signals of different ranges, the parameter settings can be adjusted to match the corresponding speed range, ensuring the accuracy of measurement data.

• Status Monitoring and Diagnosis: Equipped with LED indicators, including power indicators, running indicators, and signal status indicators, which can intuitively reflect the power supply status, running status of the module, and the validity of input signals. It also has basic self-diagnostic functions. When abnormal power supply, signal over-range and other situations are detected, it will send alarm information through indicator flashing or communication interfaces, facilitating maintenance personnel to find and deal with faults in a timely manner.

•


• Equipment Monitoring in the Power Industry: In thermal power plants, it is used to connect steam turbine speed sensors, convert the pulse signals output by the sensors into signals recognizable by the DCS system, and monitor the speed changes of the steam turbine in real time. When the speed fluctuates abnormally, the module quickly transmits the signal to the control system, and the control system sends adjustment instructions in time to ensure the stable operation of the steam turbine and the safety of the power generation system. In addition, it can also be used to monitor the frequency signal of the generator, providing data support for the frequency regulation of the power system.

• Control of Chemical Production Equipment: In chemical production plants, it is used to connect speed sensors of equipment such as metering pumps and agitators, convert the frequency signals output by them into standard signals and transmit them to the DCS system. Operators can grasp the operating speed of the equipment in real time through the control system and adjust the equipment speed according to the production process requirements to ensure the stability of the reaction process. For example, in the polymerization reaction, the mixing speed of the agitator is precisely controlled to ensure uniform mixing of reaction materials and improve product quality.

• Drive Monitoring in the Metallurgical Industry: In the steel rolling production line of iron and steel plants, it is used to collect the speed signals (pulse signals or frequency signals) of the main drive motor of the rolling mill, convert them and transmit them to the control system. The control system adjusts the rolling speed of the rolling mill according to the speed signals to ensure uniform thickness of the steel plate. At the same time, the module can link the speed signal with other parameters (such as rolling pressure) to realize the coordinated control of the rolling mill, improving production efficiency and product precision.
