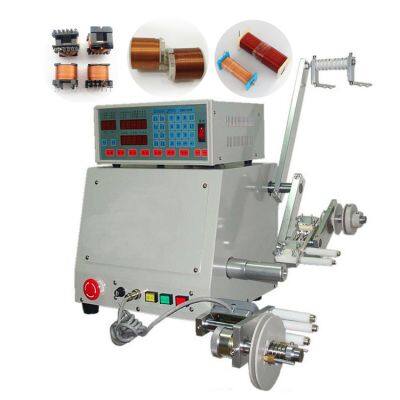

HY-R06 Transformer CNC Single-axis Winding Machine
- 100 Unit / Units per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
HY-E02 EI Transformer Hand-cranked Silicon Steel Sheet Inserting Machine
-
HY-R10 Transformer inductor coil CNC double-axis winding machine
-
HY-R12 Enameled copper wire CNC automatic spring machine
-
HY-R02 Speaker Voice Coil CNC Automatic Winding Machine
-
HY-R01 Enameled copper wire splitter winding machine
-
HY-R11 Transformer six-axis CNC automatic winding machine
Product Details
| Brand Name | CNC Single-axis Winding Machine | Place of Origin | China | |
| Model Number | HY-R06 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 34kg | Dimension(L*W*H) | L450 * W320 * H600mm | |
| Condition | New | Voltage | 220v | |
| Power(W) | 400W |
Product Description
CNC single axis winding machine
For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.
Manufacturers supply semi-automatic ishaped inductance winding machine
| Applicable diameter | 0.03-1.0 mm |
| Maximum revolutions | 6000 rpm |
| Number of spools | 1 |
| Spindle motor | DC brushless 420W |
| Winding width | 120 mm |
| Cable motor | 9V Stepping Motor |
| Cable width | 140 mm |
| Can set the diameter | 0.01-9.99mm |
| Machine Size (mm) | L450 * W320 * H600 |
| Machine weight | 34kg |
