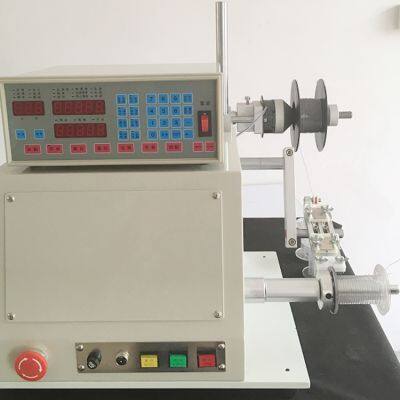

HY-R07 Transformer inductor medium torque CNC single axis winding machine
- 100 Unit / Units per Month
- guangzhou
- T/T L/C PayPal Other
- 15 days
You May Like
-
HY-B08 Pcb Assembly Machines Automatic Magnet Assembler Machine
-
HY-B08 Syringe Insulin Pen Injector Assembly Machine Syringe Manufacturing Equipment
-
HY-B08 Fully Automatic Clothespin Assembly Machine Cable Clip Assembly Machine
-
HY-B08 Lighter Assembly Machine Ball Pen Assembly Machine Production Line
-
HY-B08 Aerosol Valve Assembly Machine Roller Chain Assembly Machine
-
HY-B08 Blind Rivet Assembly Machine Cap Assembly Machine Tube Assembly Line
Product Details
| Brand Name | medium torque winding machine | Place of Origin | China | |
| Model Number | HY-R07 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 50kg | Dimension(L*W*H) | L520 * W450 * H480mm | |
| Condition | New | Voltage | 220v | |
| Power(W) | 600W |
Product Description
CNC single axis winding machine
For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.
Manufacturers supply semi-automatic ishaped inductance winding machine
| Applicable diameter | 0.3-1.5 mm |
| Maximum revolutions | 2000 rpm |
| Number of spools | 1 |
| Spindle motor | Brushless DC 600W plus drive |
| Winding width | 0-110 mm |
| Cable Motor | Stepper Motor |
| Maximum winding diameter | 250 mm |
| Machine power supply | AC220V/50HZ |
| Machine Size (mm) | L520 * W450 * H480 |
| Machine weight | 50kg |
