Electrical equipment manufacturing machinery 12 Axis transformer winding machine
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 25 days
You May Like
-
Supply of automatic power transformer twelveaxis winding machine
-
HY-Z02 Induction coil single cylinder vacuum impregnation machine
-
HY-Z01 Manual simple inductor transformer vacuum impregnation machine
-
HY-Z06 Constant temperature single cylinder vacuum impregnation machine
-
HY-Z08 Constant temperature double cylinder vacuum dipping machine
-
HY-B02 Transformer coil automatic tape winding machine
Product Details
| Brand Name | Eight axis fully automatic winding machine | Place of Origin | China | |
| Model Number | HY-R18 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 600kg | Dimension(L*W*H) | 1300Lx900Wx1400H | |
| Condition | New | Voltage | 220V | |
| Power(W) | 3000W/4500W |
Product Description

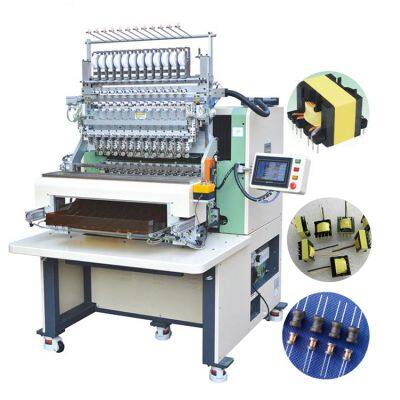

Transformer fully automatic 12-axis winding machine
1.This series of machine key components all imported from Japan, high reliability and durability,
greatly increase the life of the machine
2.Design novel, simple structure, strong rigidity, simple operation, easy maintenance
3.Programmed by computer or touch screen, the freedom to choose, Chinese display easy to understand
4.Unique quick coupling fixture design, reducing the time change type
5.Guide the needle bar 0 °/90 °/135° optional to install, easy bobbin winding different angles
6.Use precision tension control with anti-tensioner, make the product line more neat row
7.Has optional automatic loading and unloading function, can greatly save time wound
8.With automatic clamp, break, rule out the waste line features
9.Increase the servo finger and feed unit can achieve precision winding small products
10.Password save feature, modify the program to prevent non-related personnel
The New- Transformer Coil Automatic Winding Machin
coil winding machine for transformer12 spindle fully automatedSpindle number | 12 |
Spindle speed | 12000 (rpm) |
Spindle pitch | 50/70 (mm) |
Spindle servo motor power | 3000 (W) |
Traverse motor power | X:400, Y:400, Z:400 (W) |
Spindle diameter | standard:10 special:12 (mm) |
Wire range | 0.02-0.4mm Add air pressure scissors and replace the motor Can be around 0.4mm or more |
Max.wire diameter | 45/65 (mm) |
Traverse moving range | X:110, Y:150, Z:70 (mm) |
Traverse speed | 250 (mm/sec) |
Controller | HYE-3 |
Power voltage | 220V,50/60 HZ (V) |
Power voltage | 3000W |
Air pressure | 0.45-0.55 (Mpa) |
Machine size | 1300(L)x1100(W)x1400(H) (mm) |
Machine weight | 640 KG |
