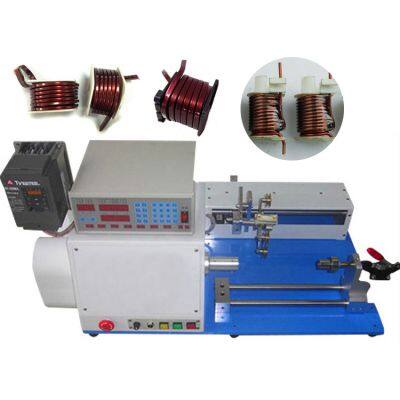

HY-R08 Thick wire transformer high torque winding machine
- 100 Unit / Units per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
HY-R27 Electric intelligent magnetic ring hook wire winding machine
-
HY-R28 Pneumatic magnetic ring hook wire winding machine
-
HY-R23 Desktop 3-inch to 8-inch gear-type magnetic ring winding machine
-
HY-CH01 Fully automatic inductor magnetic ring winding machine
-
HY-H02 Lead-free Pure Titanium Environmentally Friendly Jet Type Large Nozzle Tin Furnace
-
HY-H07 Motor Stator Automatic Spray Soldering Furnace (up and Down Positioning Soldering)
Product Details
| Brand Name | high torque winding machine | Place of Origin | China | |
| Model Number | HY-R8 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 70kg | Dimension(L*W*H) | L770 * W500 * H450 | |
| Condition | New | Voltage | 220v | |
| Power(W) | 750W |
Product Description
Features:
Hui Yue science and technology of large torque winding machine for a variety of low-frequency transformers, ballasts, rectifiers, inductors, mica films and other long lines, large coils, transformers.
1, the use of Taiwan controller, Taiwan and Taiwan AC frequency conversion with three-phase asynchronous motor, environmental protection, stability, long life;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4,0 ~ 999 sets of steps to set the capacity, can be easily set forward, reverse, cross slot and sparse winding work;
5, Unique motor drive design, the spindle is indirectly driven by the motor to improve the service life of the motor;
6, high torque, thick line with a dedicated product line, energy-saving, high stability, the maximum diameter can be wound around 3.0mm products;
7, you can match the super-extended long, super-long radiation desktop, super-long exhaust radiation products and large products can be customized
| Applicable diameter | 0.5-3 mm |
| Cable width | 0-220mm |
| Available diameter range | 290mm |
| Number of winding shafts | Single axis |
| Winding motor | Brush/frequency conversion |
| Cable motor | Stepping |
| Machine speed | 0-200/0-600RPM |
| Number of memory groups | 1000 |
| Machine Size (mm) | L770 * W500 * H450 |
| Machine weight | 70kg |
