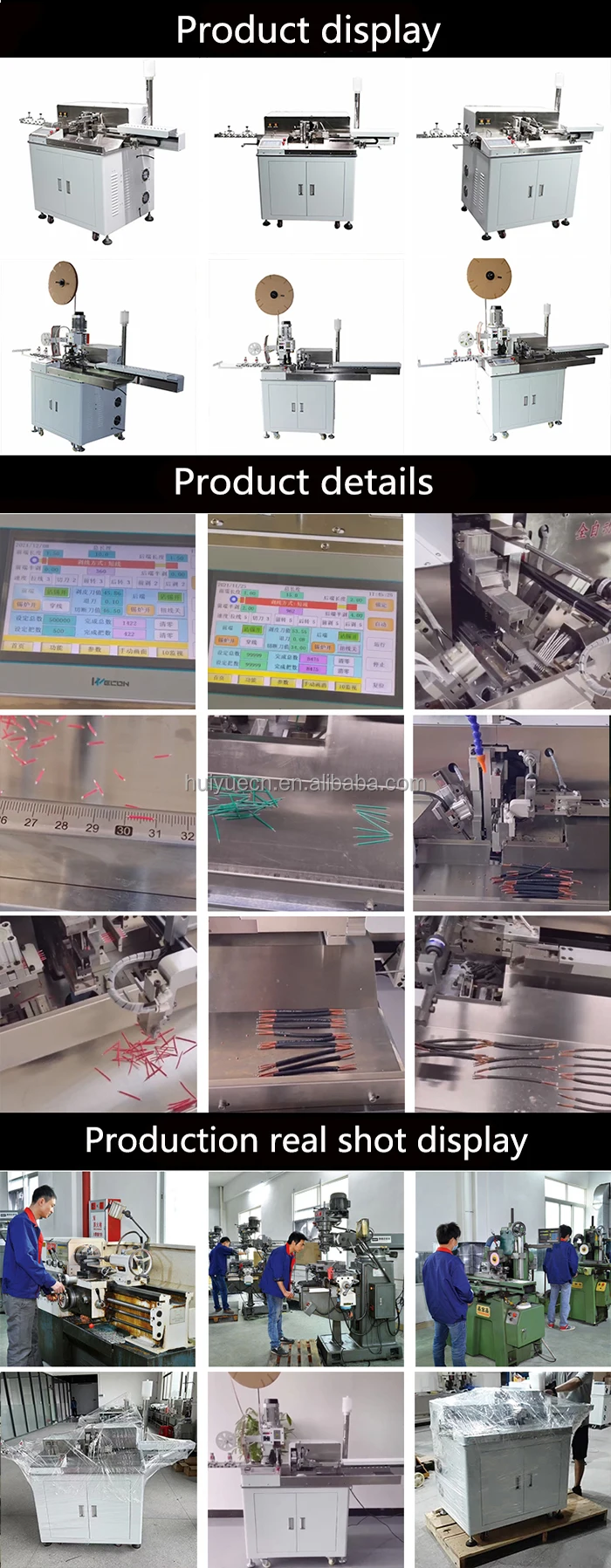

HY-H08 Insulated Wire Automatic Cutting Stripping and Double-Head Tinning Machine
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
HY-H01 Split Lead-free Automatic Constant Temperature Tin Furnace
-
HY-H10 Conveyor Belt Type Transformer and Filter Automatic Soldering Machine
-
HY-H11 Vibration Plate Loading Fully Automatic Transformer and Filter Soldering Machine
-
HY-J02 Magnetic Ring Inductance Lead Cutting and Shaping Processing Equipment
-
HY-R20 Transformer CNC Semi-automatic Bushing Winding Machine
-
HY-R07 Transformer Inductor Medium Torque CNC Single Axis Winding Machine
Product Details
| Brand Name | Double-Head Tinning Machine | Place of Origin | China | |
| Model Number | HY-H08 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 400kg | Dimension(L*W*H) | 2000mm*800mm*1500mm | |
| Condition | New | Voltage | 220V | |
| Power(W) | 2000W |
Product Description
The cutting length, peeling length and tin dipping depth can be adjusted automatically; they are all adjusted on the screen without mechanical adjustment, which is safe and convenient;
It can be fully dipped or half dipped, and the size is accurate without deviation.
Each action can be turned on or off independently; 1-100 steps can be stored, and saved after setting,
Call it directly when using it.2. The guide rail feeds the wire, the length has no error and no indentation;
the tungsten steel blade is used,
which does not damage the outer skin and does not damage the core wire and copper wire.
3. The diameter of the twisted wire is uniform,
and the twisted wire is tight and easy to perforate and solder the circuit board;
there is no tin bead, no tin frying, and no scalding of the rubber.
4. Flux is automatically titrated and can be recycled without waste.5. Automatic tinning, solid environmentally friendly tin with a tin wire diameter of 1.0mm-1.5mm;
and comes with a tin scraping action, the tin feeding frequency and the tin scraping time can be adjusted.
6. The tool holder adopts high-precision three sets of six high-speed blades;
the middle blade is cut off, the left and right blades are peeled,
and the blades operate independently, with high precision and durability.
7. The control system adopts a seven-inch dimension control high-definition display screen,
the touch screen display is clear, the sensitivity is high, and the operation is simple.
8. The machine adopts ergonomic design, which can be controlled by sitting,
which is convenient for debugging and operation.
9. The stripping clip, the wire pulling clip and the wire take-up clip can
be adjusted to ensure that the finished product has no marks.
10. Adopt suction collection device to ensure that the line skin does not
fly around and keep the machine clean and tidy.
HY-H08 automatic cutting, peeling, twisting and tinning machine for all kinds of wires,
jumpers, welding wires, wires, avionics cables, lithium battery cables,
LED cables, Teflon cables, flat cables , male-female pairing wire, double-ended tinned wire,
audio wire, silver-plated wire, computer wire,
Processing and production operations in the field of wire harness production such as speaker wires,
terminal wires, etc.
Model | HY-H08 |
device name | Automatic wire cutting, stripping, twisting, double-head tinning machine |
Wire range | 8AWG-32AWG (out of range can be customized) |
Cutting lengt | 15-1000mm (out of range can be customized) |
Stripping length | 0-15mm (out of range can be customized) |
Twisted wire length | 3-1 5mm (out of range can be customized) |
Tin dip length | 0-1 5mm (out of range can be customized) |
Production capacity | 18AWG- 32AWG, eight wires, 8800 pieces per hour; |
16AWG- 32AWG, five wires, 5500 pieces per hour; | |
10AWG-14AWG, two wires, 2000 pieces per hour | |
8AWG, - wire, 800 per hour. (depending on the specific sight material) | |
Motors and Drives | 6 sets of Shenzhen Jiemeikang or Shenzhen Yankong brand servo |
Taiwan AirTAC cylinder, Taiwan Shangyin slide rail, Taiwan TBI brand screw | |
Scope of application | Electronic wire, double parallel wire, Teflon wire, flat wire, enameled wire, flat sheathed wire, BV wire, silicone wire, round sheathed wire, etc. |
Machine power | 2000W |
Machine size | 2000(L)x800(W)x1500(H) |
Machine weight | 400KG |
