Home > Products > Automatic assembly machine > Transformer automatic glue wrapping machine Magnetic core tape wrapping machine Inductive coil adhesive tape machine
Transformer automatic glue wrapping machine Magnetic core tape wrapping machine Inductive coil adhesive tape machine
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
HY-R13 Transformer fully automatic winding machine Inductive coil eight axis winding machine
-
Transformer soldering equipment Inductive coil tin immersion machine Flip over automatic soldering machine
-
HY-Z03 Transformer Production Equipment Automatic Vacuum Impregnation Machine
-
Electrical equipment manufacturing machinery 12 Axis transformer winding machine
-
Supply of automatic power transformer twelveaxis winding machine
-
HY-Z02 Induction coil single cylinder vacuum impregnation machine
Product Details
| Brand Name | automatic glue wrapping machine | Place of Origin | China | |
| Model Number | HY-B02 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 25KG | Dimension(L*W*H) | L430x W300x H260mm | |
| Condition | New | Voltage | 220V | |
| Power(W) | 400W |
Product Description

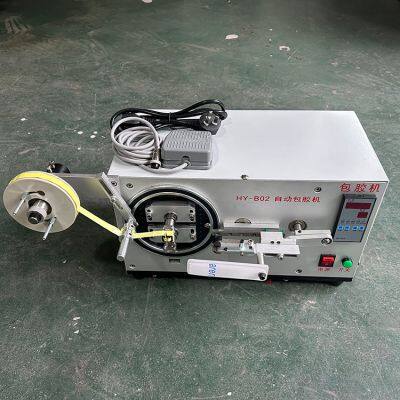

Transformer tape machine
Packaging machine used in a variety of high and low frequency transformers, inductors coil,
relays and other core tape and insulation tape package; and mobile phone charger,
USB data cable plugs and other protective film packaging.
Using single-chip control, stepper motor 7.5p (power) motor running, high quality, high efficiency, low noise.Efficiency requirements (capacity requirements): hourly: about 3000pcs (quantity)
Model | HY-B02 |
Membrane range | 34mm - 77mm are applicable |
Number of turns | 1 - 9 turns, the number of turns can be arbitrarily set |
Two-axis wheelbase | diaphragm axis distance from 25mm - 85mm can be adjusted |
Size | L430x W300x H260mm |
Material construction | the main part of the use of S45C steel material; other A3 steel plating hard chromium |
Optional function | a. Automatic return material, easy to operate, improve efficiency (combined with product considerations); c. other functions (according to customer requirements); |
Weight | 25KG |
1, any vertical, horizontal transformers can be encapsulated, and the replacement of simple, fast, suitable for a variety of operations.
2, viscose cloth position can be fine-tuned.
3, the number of envelopes can be arbitrarily set, (speed can be adjusted)
4, the body has: manual and automatic functions
5, the yield is about 52-58 / min;
6, the use of man-machine interface control, easy to operate, there is a tape to remind the function.
7, optional function: a. Automatic return material, easy to operate, improve efficiency (combined with product considerations);
b. Motor speed selection 7.5 or 10 (the smaller the number of smaller speed);
c other functions (according to customer requirements Customized);
