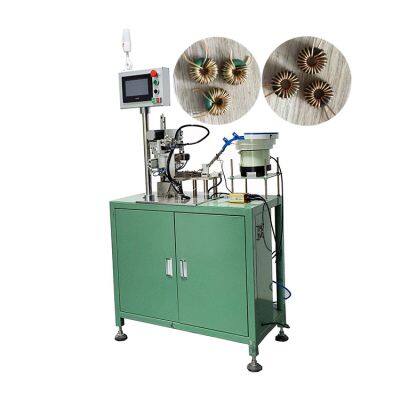

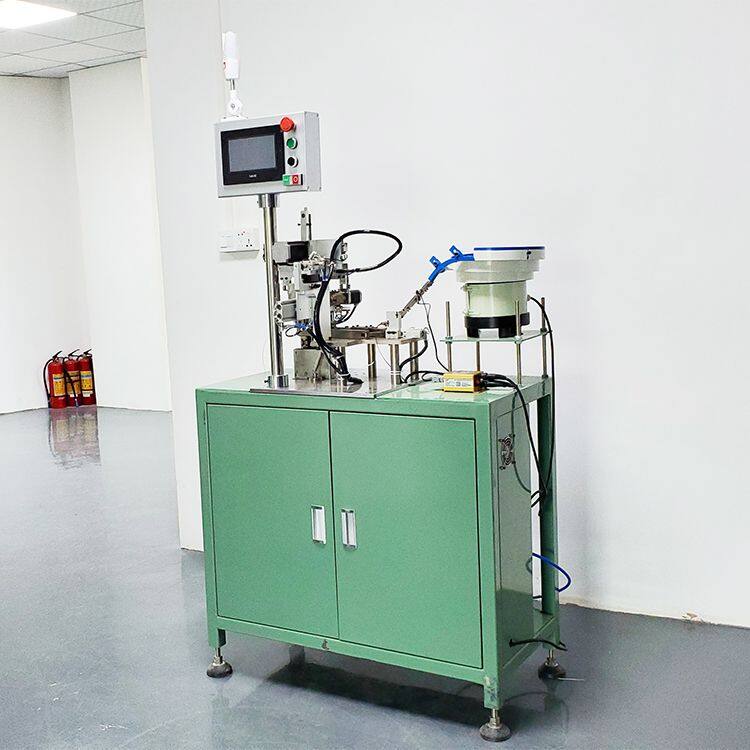

HY-CH01 Fully Automatic Inductor Magnetic Ring Winding Machine
US$ 3860 - 4136
/ Unit
1 Unit(Min. Order)
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
HY-H02 Lead-free Pure Titanium Environmentally Friendly Jet Type Large Nozzle Tin Furnace
-
HY-H07 Motor Stator Automatic Spray Soldering Furnace (up and Down Positioning Soldering)
-
HY-M106 Straight up and Straight Down Automatic Lifting Soldering Furnace
-
HY-M107 Fully Automatic Multifunctional 360 Degree Rotating Tin Melting Furnace
-
HY-K01 Single Door/double Door Hot Air Circulation Industrial Constant Temperature Oven
-
HY-K08 Tunnel Type Hardware Plastic Screen Printing Ink UV Curing Oven
Product Details
| Brand Name | Fully automatic magnetic ring winding machine | Place of Origin | China | |
| Model Number | HY-CH01 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 60kg | Dimension(L*W*H) | 940X480X1600mm | |
| Condition | New | Voltage | 220v | |
| Power(W) | 600W |
Product Description
HY-CH01 Fully automatic inductor magnetic ring winding machineeature Description
| Suitable winding diameter | 0.3-0.9mm (double winding) can be customized |
| Equipment power | 600W |
| Magnetic ring outer diameter range | 8mm or more (customizable) |
| Magnetic ring inner diameter range | 5mm or more (customizable) |
| Finished product height | 3mm or more (customizable) |
| Wire storage length | 450mm |
| Power supply | 220V-50HZ |
| Machine size | 940X480X1600mm |
| Machine weight | 60kg |
Brand-new operating system,with functions such as automatic feeding of magnetic rings,automatic winding,
and material collection
PLC wide-screen human-machine interface
Integrated wire feeding structure,more stable wire feeding
Winding belt structure protection,increasing belt life
Independent wire storage speed and length control
Independent wire arrangement speed and number of turns control
With current operation status display function, production status is clear at a glance
Programming control stepper motor drives the core to rotate in any direction
The controller can store 1,000 winding programs,and each winding program can edit 10 different winding
steps to meet different product requirements
Built-in imported high-speed fiber optic turns sensor,with double-digit display, intuitive and convenient adjustment,
accurate and stable advantages
Variable wire spacing control,from sparse wire arrangement to micro-precision wire arrangement,
can be programmed to achieve the desired effect
Adopting servo motor drive,high wire storage accuracy,stable speed,smooth switching between wire
storage and wire arrangement speed
Purpose/Application Areas
The fully automatic magnetic ring winding machine is a fully automatic high-end winding machine developed for magnetic ring common mode inductors.This model can help the production achieve the requirements of high output and high quality products without high cost. It is a fully automatic winding machine designed for micro magnetic cores,thin wires, and magnetic rings with small inner and outer diameters, which are difficult to pick up and place manually.Its main functions include: automatic feeding of magnetic rings,automatic feeding of wires,automatic winding,automatic wire cutting,automatic wire arrangement,etc.The production process does not require manual participation,which greatly increases the efficiency of production workers.At the same time,it ensures the stable quality of the produced magnetic cores.The control system with PLC and human-machine interface as the core makes the control circuit simple,the operation simple, the performance stable,and retains the usual ease of use of the machine.
