Wireless Sounder Strobe Wireless Fire Alarm Sound Flashing Lighting Alarm

Wireless fire alarm and fire fighting equipment with all fire security components at Vedardsecurity dot com for retail shopping easy. Fire sounder and flashing alarm is installed at entrance and passway of every floors for alert of fire.

The sound and light alarm is installed in the evacuation passage and at the entrance of the evacuation passage

In noisy or low visibility environments, sound and light alarms can guide people to evacuate through dual prompts of sound and flashing.

TCSG5416W wireless sounder strobe is suitable for installation in public places, factories and other environments, and is used together with JB-TB- TC5126W wireless fire alarm control panel.

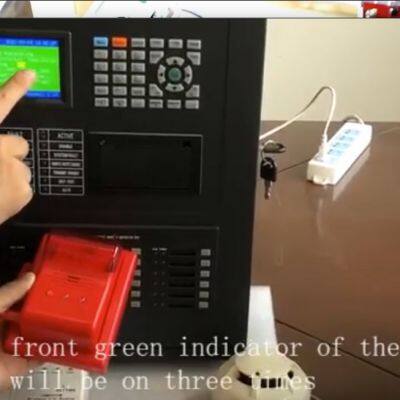

When the control panel receives the fire alarm instructions from other fire alarm devices, the control panel starts the

alarm through wireless signals, and the alarm sends out sound and light signals to achieve the purpose of audible and visual alarm.

Technical Data

All data is supplied subject to change without notice.

Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated.

Battery CR17450-2-080-02

Rated Operating Voltage DC3V Operating current monitoring current≤45uA ,

 alarm current≤240mA

Sound level 75dB~115dB

Coding method automatically assigned when networking

Radio frequency transmit power<20dBm

Communication method 470MHz FSK coded bidirectional

Operating environment temperature 10℃~+55℃ relative humidity ≤95%

Dimension 101mm*137mm*43mm

Weight 170g

the 470MHz wireless communication technology is adopted, and no embedded wiring is needed, so the engineering

installation is convenient and quick; With battery low voltage detection function, it can reflect the battery power situation in time;

The microprocessor is used to realize signal processing, and the digital signal is used to communicate with the control panel, which works stabely and reliably, and has a good ability to suppress electromagnetic interference.
