Ceiling white 2 wires conventional smoke detector photoelectric smoke sensor fire alarm for fire alarm security system
- 5000 Piece / Pieces per Month
- SHENZHEN
- T/T PayPal Western Union
- 5 days
You May Like
-
CST smoke detector CE certified smoke alarm 2 wires fire sensor for conventional fire alarm system YT102
-
CE Smoke Detector Conventional Smoke Sensor Photoelectronic detector 2 wires for fire alarm system
-
2-wire conventional Smoke Detector Fire proof Sensor Alarm DC9-28V Smoke Sensor for fire alarm system
-
Hot sale Conventional Heat Detector for fire alarm system Temperature Sensor Heat Alarm 2 wire
-
2 wire 9-28VDC Temperature Detector Heat Sensor for fire alarm system
-
Mini 2 zones Fire Alarm Control Panel Security Host Master Panel FACP Small conventional control panel
Product Description

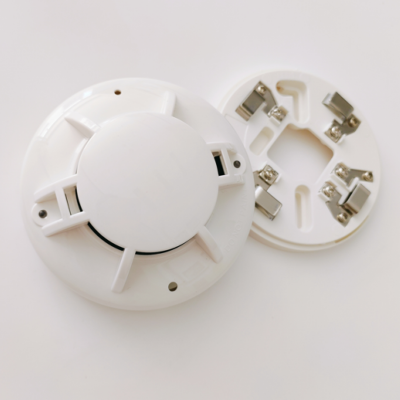

Ceiling white 2 wires conventional smoke detector photoelectric smoke sensor fire alarm for fire alarm security system
General Description
The device is photoelectronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
Specification:
Operating Voltage Range: 9 to 28VDC Volts Non-polarized
Standby Current: ≤60μA @ 24 VDC
Maximum Alarm Current (LED on: ) ≤30mA @ 24 VDC
Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range: 14°F to 122°F (-10°C to50°C)
Adjustable Sensitivity: 0.15～0.3dB/m
Height: 2.2? (55 mm) installed in Base
Diameter: 4.0? (103 mm)
Weight: 5.5 oz. (155 g)
