Wireless Fire Alarm Smoke Detector Fire Detection With Fire Fighting Security Equipment

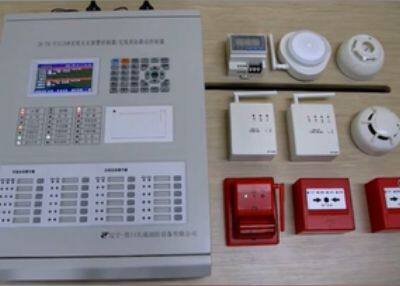

Wireless fire alarm and fire fighting security system all components wireless connection with alarm panel easy. Fast building fire security project and install the fire alarm and linkage fire fighting security systems even non-professional.

With a few clicks to register the smoke detector to alarm control panel and the information will be showed on panel.

JTY-GM-TC5401W wireless photoelectric smoke detector is an intelligent industrial fire detector based on the principle of transmitting and receiving high- precision infrared tubes, which can be used with the wireless fire alarm control panel and smart home platform APP The detector uses 470MHz wireless transceiver technology to process data with a highly
integrated micro-processing chip. It has the characteristics of high sensitivity, long transmission distance and low power consumption.

Technical Data:
All data is supplied subject to change without notice.
Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated.
Battery CR17450 3V
Operating current monitoring current≤8uA , alarm current≤18mA
Coding method: automatically assigned when networking Radio frequency transmit power<20dBm
Frequency band 470MHz
Communication distance ≤500m
Communication method 470MHz FSK coded
bidirectional Protection area 20~30m2
Operating environment temperature 10℃~+55℃
relative humidity ≤95%
Dimension 100mm*55mm(with base)
Weight 118g
accurately and quickly detect the change of smoke concentration in the environment,
accurately and timely determine the fire and give an alarm advanced wireless communication technology, signal transmission can be completed without wiring, and engineering installation is simple and convenient It has the function of battery low voltage detection, and reminds the user to replace the battery when it is insufficient to maintain the normal operation of the detector.
