Fire Alarm Horn Light Sound Alarm Fire Evacuation Business Security Equipment

Loud sound bright light alarm for fire warning and fire evacuation indication. Alarm sounder works with any brand conventional fire alarm system 24V 2 wire non-polar.

Suitable for using with 2 wire conventional fire alarm control panel.

80dB~115dB Fire evacuation sound and light alarm device

Fire beacon DC24V power two-wire, non-polarized

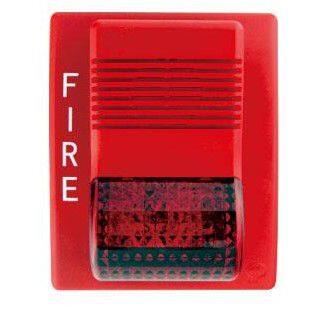

TCSG5228F Conventional Sounder Strobe

TCSG5228F Conventional Sounder Strobe adopts 2 wires (24V power). It is mainly installed in public places. It generates a kind of optical and visual alarm used to warn people in field when fire occurs.

With plug-in structure, reliable performance, simple and easy installation, attractive appearance, it has high reliability and good anti-interference functions.

It connects to the fire alarm control panel by using an addressable linkage control module.

More details and instruction can be found at fire alarm system

Features

1. DC24V power two-wire, non-polarized.

2. After activated, it will generate strong audible and visual alarm signal.

3. Attractive appearance, convenient and reliable installation.

Technical Specifications

1. Operating voltage: Power bus voltage: DC24V Range allowed: DC19V～DC28V

2. Operating current: Power action current≤50mA

3. Operating environment: Temperature: -10°C～+50°C

Relative Humidity: ≤95 %( 40±2 °C) Indoor (Non-residential)

4. Dimension: 140mm×115mm×55.3mm (L×W×H)

5. Alarm voice: 80dB~115dB (A weighted)

6. Flashing frequency: 1Hz～2Hz

7. Cycle of changing level tone: 3.5S～4.5S

8. Weight: 200g
