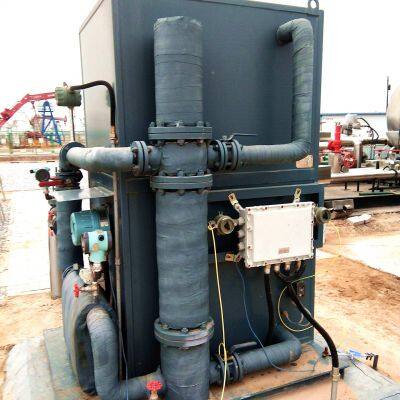

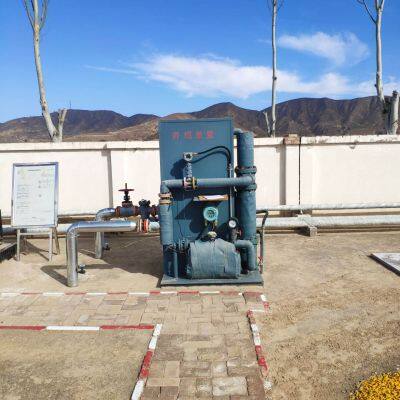

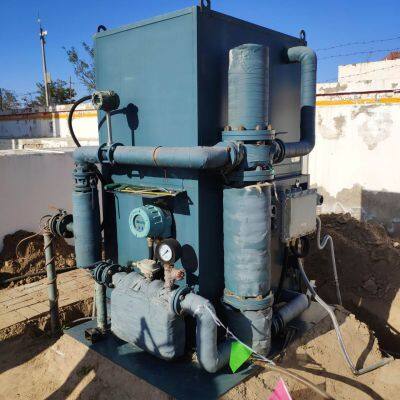

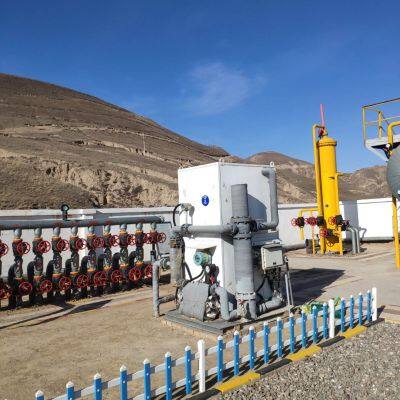

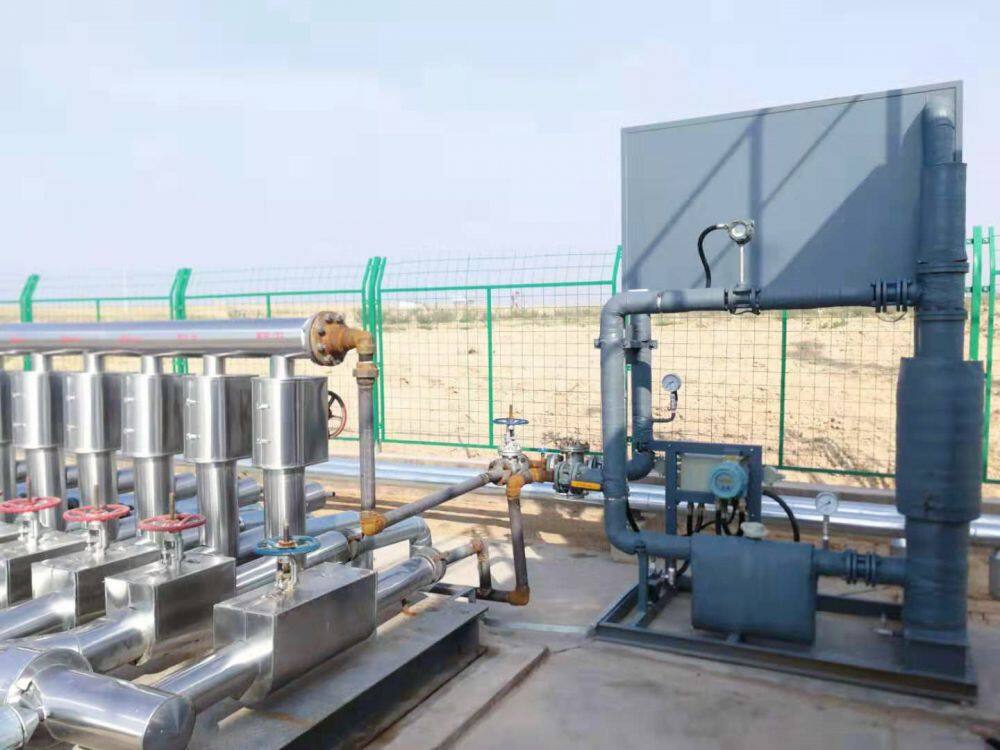

Single Well Multiphase Separator Metering Device
Negotiable
/ Set
1 Set(Min. Order)
- 90 days
You May Like
Product Details
| Brand Name | shengyi | Place of Origin | China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | Used |
Product Description
PRODUCT IMPLEMENTATION STANDARDS:
The products are designed, manufactured, and tested in accordance with standards of GB/ANSI/
ASME/BS. In addition, all products can be customized according to customers’ special requirements for other standards
PRODUCT STRUCTURE:
MSMD comprises a gas liquid cyclone separator, gas-liquid separation controller, measuring instrument, automated multi-channel well selection valves (optional）, data acquisition and processing system, data remote transmission system, remote data access and distribution system (optional).
WORKING PRINCIPLE:
The gas-liquid cyclone separator efficiently separates the liquid from the Single oil wells into gas and liquid phases. The gas and liquid two-phase mixture level and pressure difference are controlled by the gas-liquid separation controller to ensure that the cyclone separator achieves its maximum effect on the gas and liquid separation. After separation, Gas flow volume is accurately measured through the gas metering device at the top of the MSMD, and liquid flow mass is accurately measured through
the mass metering device at the bottom of the MSMD. The moisture content percentage is calculated by the computer based on the gathered data. Field pressure data is measured by the pressure transmitter.
PRODUCT ADVANTAGES AND TECHNICAL CHARACTERISTICS:
1.The non-radioactive measuring method is more environmentally friendly, safe and reliable.
2.The product has a wide range of applications. It can be applied to measure the multiphase flow of a single well and multiple wells, and total flow under complex flow conditions and diverse medium compositions, and various harsh environments, from land, sea to deserts.
3.The design of pipeline structure is deliberately for the metering process with no pressure devices and an emphasis on safety.
4.It can be used to measure diverse quantities including liquid, oil, gas, water, temperature and pressure.
5.The accuracy and repeatability of measurement data are outstanding.
6.The product is designed to perform 24 hours’ continuous online measurement, and can generate liquid, gas, water (oil) measurement curves and various production reports according to customers’ requirements.
7.The product has the function of alarming on abnormal data for pressure, temperature and liquid.
8.Simple manipulation, reliable operation, long service life, ease of repair and maintenance.
9.The product can achieve real-time data acquisition, remote transmission and distribution. It can conveniently, timely, and comprehensively monitor the work site, providing the basis for scientific decision-making.
10.Unique skid mounted design is more convenient to use and move
MAIN PERFORMANCE INDICATOR:
1.MEASURING RANGE
Liquid Flow Ratio: 15:1;
Gas Flow Percentage:0～99%;
Water Cut Percentage:0～100%.
2.MEASUREMENT UNCERTAINTY
Liquid Flow Percentage: ±５% ;
Water Cut Percentage: ±3%;
Gas Flow Percentage: ±5%～±10%.
