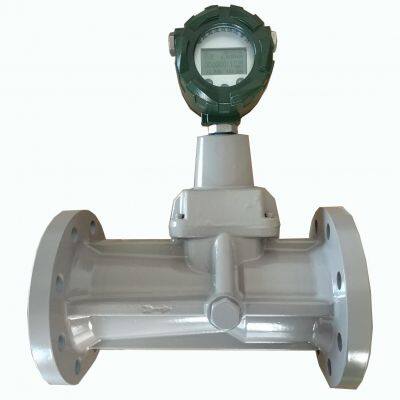

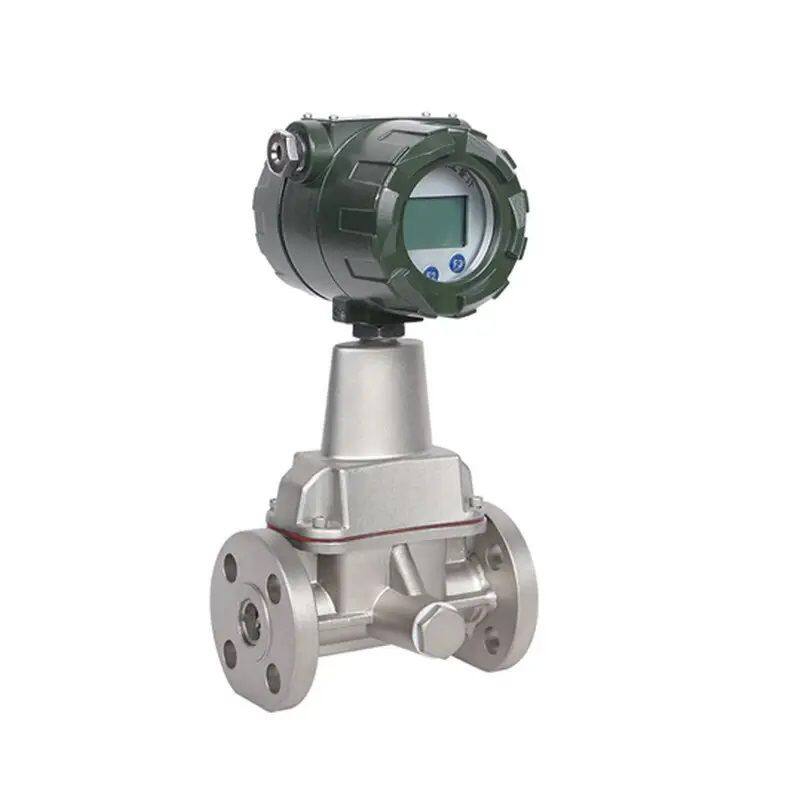

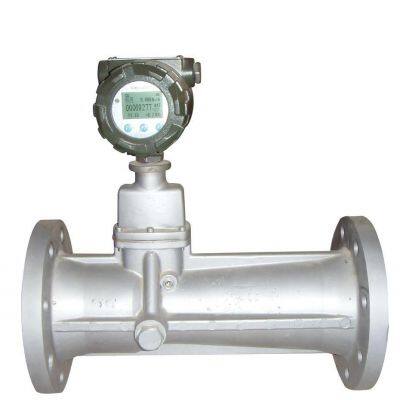

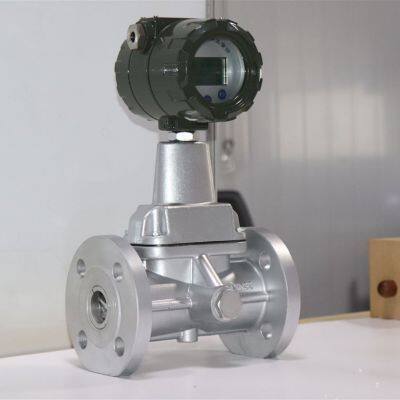

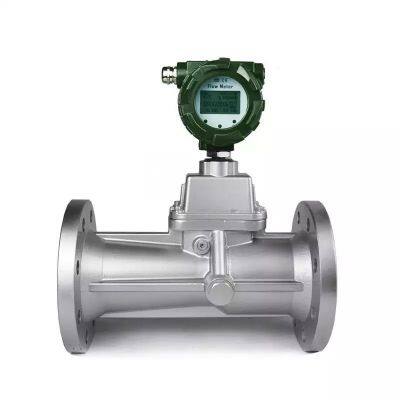

VOR-TEX PRECESSION FLOW METER
- 30 days
You May Like
Product Details
| Place of Origin | China |
Product Description
1.Product overview
Vor-tex Precession Flowmeter can be widely used in petroleum, chemical, electric power, metallurgy,urban gas supply and other industries to measure the flow of gas. lt is the first choice of oil and gas transmission and distribution metering.
2.Main technical parameters
Nominal diameter(mm):DN10~DN500
Nominal pressure(MPa):1,1.6,2.5,4,16,25.32.35
Accuracy level: 1.5
Output signal: 4~20mA current output, pulse output
Communication interface:RS-485,RS-232
Power supply: Micro power batteries
Flow range: see the table below
| Nominal diameter (mm ) | 20 | 25 | 40 | 50A | 50B | 80A | 80B | 100A | 100B | 125 | 150A | 150B | 200A | 200B | 250A | 250B | 300 |
| Minimum flow (m3/h) | 1.5 | 2.5 | 5 | 6 | 10 | 13 | 20 | 20 | 32 | 25 | 32 | 50 | 80 | 130 | 130 | 200 | 200 |
| Maximum flow (m3/h) | 15 | 25 | 50 | 65 | 100 | 250 | 400 | 400 | 650 | 700 | 650 | 1000 | 1600 | 2500 | 2500 | 4000 | 4000 |
