Product Details
| Brand Name | GCAN | Place of Origin | China | |
| Model Number | PLC-400 |
Product Description

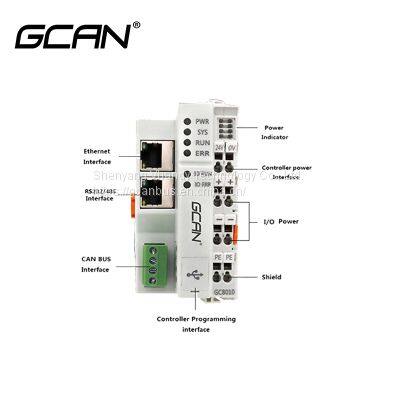

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/…). The control module has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Total 3 control modules
| Model | Characteristic | Communication bus | ||
| CPU frequency | Program storage | Data storage | ||
| GCAN-PLC-400 | 168M | 16M | 512K | 1*CAN+1*Ethernet+1*RS232(or RS485) |
| GCAN-PLC-510 | 400M | 32M | 16M | 1*CAN+1*Ethernet+1*RS232(or RS485) |
| GCNA-PLC-511 | 400M | 32M | 16M | 2*CAN+1*Ethernet+1*RS232+1*RS485 |
3 kinds if interface
CAN, Ethernet, RS232/485, Follow ISO 11898, support CANopen/ Modbus RTU/ Modsbus TCP, can be used as master or slave station
5 programming language
Support SFC (Sequential function chart), LD (Ladder diagram), FBD (Function block), ST(Strutured text), IL (Instruction list)
After-sales service
7 x24 hours every week after sales technical support with our professional engineers to solve problems
IO freely expand
Plenty of IO modules optional including digital&analog IO modules and some other special modules. One main control module with max 32 IO modules (32*8=256 channels)
Free progrm software
Support OpenPCS software, follow IEC 61131-3, the software is free with GCAN-PLC
Without specialized downloader
GCAN-PLC can use common micro usb to complete debugging and downloading
Total 2 communication modules
| Performance | CANopen adapter (GCAN-IO-8000) | Modbus adapter (GCAN-IO-8100) |
| Node number | 1~127 | 1~247 |
| Baud rate | 10Kbps~1000Kbps | 600bps~115200bps |
| Power input | 24V DC (18~36V) | |
| Insert I/O module number | 32 pieces (at most 32*8 IO point) | |
| Dimension | 100mm*69mm*48mm | |
| Working temperature, humdidness | -40℃~+85℃, 0~90%RH, without condensation | |
| IP grade | IP20 | |
Input and output modules
| IO Module Selection Table | ||||
| I/O | Type | Characteristic | Signal | Channel |
| Digital input | GC-1008 | Digital input (PNP) | 24V DC | 8-channel |
| GC-1018 | Digital input (NPN) | 24V DC | 8-channel | |
| GC-1502 | Counter(200kHz max) | – | 2-channel | |
| Digital output | GC-2008 | Digital output (PNP) | 24V DC | 8-channel |
| GC-2018 | Digital output (NPN) | 24V DC | 8-channel | |
| GC-2204 | Relay output | – | 4-channel | |
| GC-2302 | PWM (20Hz~200kHz) | – | 2-channel | |
| Analog input | GC-3604 | Voltage input, 16 bits | -5~+5V | 4-channel |
| GC-3624 | Voltage input, 16 bits | -10V~+10V | 4-channel | |
| GC-3644 | Current input, 16 bits | 0-20mA | 4-channel | |
| GC-3654 | Current input, 16 bits | 4-20mA | 4-channel | |
| GC-3664 | Voltage input, 16 bits | 0~+5V | 4-channel | |
| GC-3674 | Voltage input, 16 bits | 0~+10V | 4-channel | |
| GC-3804 | 2-wire PT100, 16 bits | Thermal resistance | 4-channel | |
| GC-3814 | 2-wire PT1000, 16 bits | Thermal resistance | 4-channel | |
| GC-3822 | 3-wire PT100, 16 bits | Thermal resistance | 2-channel | |
| GC-3832 | 3-wire PT1000, 16 bits | Thermal resistance | 2-channel | |
| GC-3844 | K type thermocouple | Thermocouple | 4-channel | |
| GC-3854 | S type thermocouple | Thermocouple | 4-channel | |
| GC-3864 | T type thermocouple | Thermocouple | 4-channel | |
| GC-3874 | J type thermocouple | Thermocouple | 4-channel | |
| Analog output | GC-4602 | Voltage output, 16 bits | -5V~+5V | 2-channel |
| GC-4622 | Voltage output, 16 bits | -10V~+10V | 2-channel | |
| GC-4642 | Current output, 16 bits | 0-20mA | 2-channel | |
| GC-4652 | Current output, 16 bits | 4-20mA | 2-channel | |
| GC-4662 | Voltage output, 16 bits | 0~5V | 2-channel | |
| GC-4672 | Voltage output, 16 bits | 0~10V | 2-channel | |
| GC-4674 | Voltage output, 12 bits | 0~10V | 4-channel | |
| Special module | GC-6101 | RS232/RS485 extension | – | – |
| GC-6201 | GPRS extension | – | – | |
| GC-6501 | WiFi extension | – | – | |
| GC-8012 | Power extension | – | – | |
packaging
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
