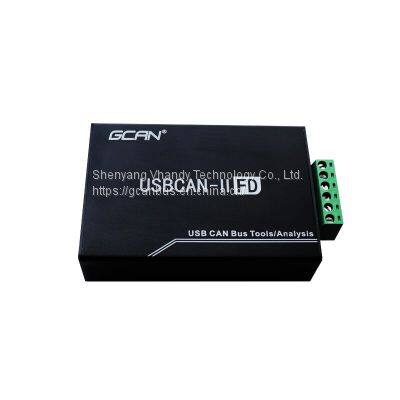

GCAN 2-Channel CAN FD Debug Analyzer, Supports Windows System with Interface Card CAN Bus for High-Performance Tools

 Overview        Quick Details

• Place of Origin:Liaoning, China

• Brand Name:GCAN

• Model Number:USBCAN II FD

• Protocol:Support CAN2.0A, B protocol, comply with ISO11898-1 standard

• Interface:Integrated 2 way CANFD interface

• Communication baudrate:40Kbps to 1Mbps

• Baud rate:CAN FD baud rate is arbitrarily programmable from 100Kbps to 5Mbps

• Isolation level:2500V

•

• Packaging & Delivery

•

• Selling Units:Single item

• Single package size: 21X16X6 cm

• Single gross weight:0.500 kg

• Package Type:Export carton

• Lead Time:

• Quantity(sets)	1 - 500	>500
  Est. Time(days)	7	To be negotiated

• Product description

• USBCAN-II FD is a high-performance CAN FD interface card developed by Guangcheng Technology specifically for the CAN FD network. The device integrates 2 CAN FD interfaces and supports ISO standard CAN FD and Bosch CAN FD standards. Engineers can use the device to debug and analyze CAN FD or ordinary standard high-speed CAN networks, and use the functions in ECAN Tools software to send and receive data easily.
  USBCAN-II FD is a tool specially used for debugging and analyzing CAN FD network. The host computer software provided by this module supports Windows7 / Windows10 and other Windows operating systems. For secondary development users, our company provides secondary development function libraries and routines Users can use the function library to develop their own software by referring to routines, which can be widely used in product development and data analysis.



• Product features

• Specification	PC complies with USB2.0 high-speed specification
  Protocol	Support CAN2.0A,B protocol,comply with ISO11898-1 standard
  Interface	Integrated 2 way CANFD interface
  Communication baudrate	CAN communication baud rate is arbitrarily progtammable from 40Kbps to 1Mbps
  Baud rate	CAN FD baud rate is arbitrarily programmable from 100Kbps to 5Mbps
  Resistance	Built-in 120 ohm terminal tesistance,can be controlled by DIP Switch
  Operating temperature	-40℃~85℃
  Isolation level	2500V
  	CANFD supports ISO standare,BOSCHstandard
  	Support ECAN Tools test sotrware,support Windows series system
  	Provide host computer secondary development interface function

•

• Support standard CAN2.0A / B and CAN FD data communication

• Has two independent CAN / CAN FD channels

• CAN FD bus with variable baud rate
