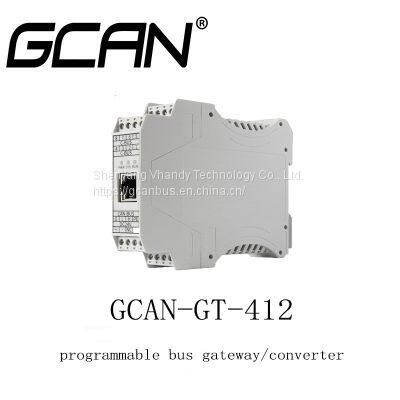

GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine

FOB Price

233 - 248 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port DaLian
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GCAN		Place of Origin	China
Model Number	GCAN-412

Product Description

Overview Quick Details

Overview
Essential details
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-GT-412
Type::Gateway
Programming languages::SFC LD FBD ST IL
Programming environment::OpenPCS software
Flash (program memory)::32M bytes
SRAM (data memory)::16M bytes
User data storage area::2K bytes
Run-Time system:1 PLC task
PLC cycle time::1000 instructions take about 3ms
Power shock::24V DC max / 10A max

Lead Time:
Quantity(sets) 1 - 500 >500
Est. Time(days) 7 To be negotiated

Description

GCAN-GT-412 is a programmable bus gateway/converter. The device integrates 2 CAN bus interfaces, 1 Ethernet bus interface, and 1 RS232 bus interface. Before actual use, users need to write application programs for the device through openPCS software to achieve data between different bus interfaces Of each other.

The GCAN-GT-412 module supports multiple standard communication protocols, such as CANopen, SAE J1939, Modbus TCP, Modbus RTU,etc.
In actual use, the user can directly select the function block of the corresponding protocol to load it. The addition of the function block makes the user Programming work becomes simple, users only need to understand the basic PLC programming
instructions and the characteristics and parameters of the corresponding bus corresponding protocol to complete the programming work.

GCAN-GT-412 can be programmed using OpenPCS software, which supports five standard PLC programming languages that comply with the IEC-61131-3 standard, such as: SFC (sequential function diagram), LD (ladder diagram), FBD ( Function block), ST (structured text), IL (instruction list), which makes the program very portable and reusable, and the software also has a variety of debugging
functions (such as power off, single step, monitoring, etc.) ) To make the debugging process more convenient.

Support CAN,Ethernet,RS232/485 three buses are used simultaneously

GCAN-GT series programmable gateway modules come with three different types of bus interface.these three bus interface can be used at the same time,so users can flexibly convert the data on each bus to other buses in combination with the actual needs of the field.

Support standard communication protocols

The CAN bus,Ethernet bus and RS232/485 bus of GCAN-GT series programmable gateway modules support commonly used communication protocols.Users can develop programs based on actual needs similar to :Modbus TCP slave to CANopen master,RS485 to CANopen master/slave and other equipment.

Programming software based on IEC 61131-3

The GCAN-GT series of programmable gateway modules support users to use the 5 programming languages stipulated in the IEC 61131-3 standard to program them.This is very easy for users who have done PLC programming before,and we also provide users with various the function blocks of various bus and various protocols,users can directly use the function blocks to quickly make application programs.
