Home > Products > PLC & IO Coupler Series > GAN-PLC-510 New Original Micro Ethernet PLC with free Software support Modbus TCP, Modbus RTU, Canopen protocol

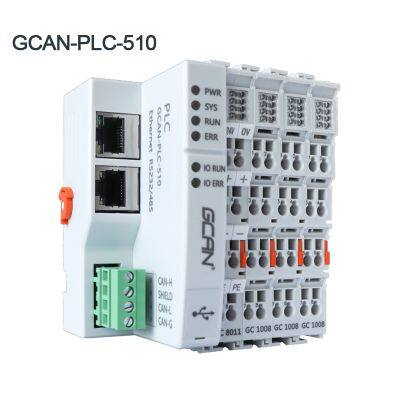

GAN-PLC-510 New Original Micro Ethernet PLC with free Software support Modbus TCP, Modbus RTU, Canopen protocol
233 - 248
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- DaLian
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
GCAN PLC with CAN Bus, Digital and Analog Inputs and Outputs
-
GCAN-PLC controller adopts high-speed CPU to realize remote control and real-time data monitoring PLC controller
-
GCAN-PLC Programmable Logic Controller Made in China Low cost high quality PLC controller with CAN interface
-
PLC Programmable Logic Controller Mini Modular Scalable PLC Programmable Logic Controller
-
GCAN-IO-8000 CANopen Adapter Uses High-speed
-
24V DC (18~36V) Standard Modbus slave station Baud rate 600bps~115200bps Support CRC check
Product Details
| Brand Name | GCAN | Place of Origin | China | |
| Model Number | PLC-510 |
Product Description
Product introduction
GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Total 3 control modules
Model | Characteristic | Communication bus |
GCAN-PLC-400 | CPU frenquency 168M | 1*CAN+1*Ethernet+ 1*RS232(or RS485) |
Program storage:16M byte | ||
Data storage:512K byte | ||
GCAN-PLC-510 | CPU frenquency 400M | 1*CAN+1*Ethernet+ 1*RS232(or RS485) |
Program storage:32M byte | ||
Data storage:16M byte | ||
GCNA-PLC-511 | CPU frenquency 400M | 1*CAN+1*Ethernet+ 1*RS232+1*RS485 |
Program storage:32M byte | ||
Data storage:16M byte |
Total 2 communication module| Performance | CANopen adapter (GCAN-IO-8000) | Modbus adapter (GCAN-IO-8100) |
| Node number | 1~127 | 1~247 |
| Baud rate | 10Kbps~1000Kbps | 600bps~115200bps |
| Power input | 24V DC (18~36V) | |
| Insert I/O module number | 32 pieces (at most 32*8 IO point) | |
| Dimension | 100mm*69mm*48mm | |
| Working temperature, humdidness | -40℃~+85℃, 0~90%RH, without condensation | |
| IP grade | IP20 | |
Input and output modules
packaging
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
